Fastening Hood Covering At The Sides Of The Roof Frame

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

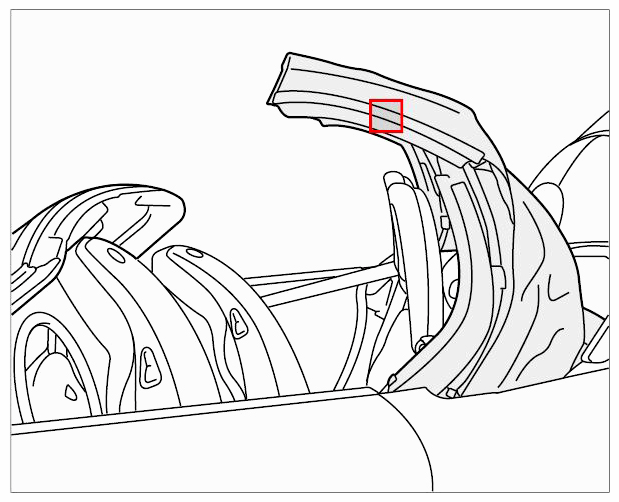

Fig 1: Identifying Installation Position Of Hood Covering
G09590361Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Lay the hood covering -2-  to the front and guide the shaped sheetmetal part into the roof frame from above.
  2. Fasten the hood covering -2-  with the fastening screws -1-  , starting from the front bottom side of the roof frame. Tightening torque → Tightening torque: 3.5 Nm (2.5 ftlb.)

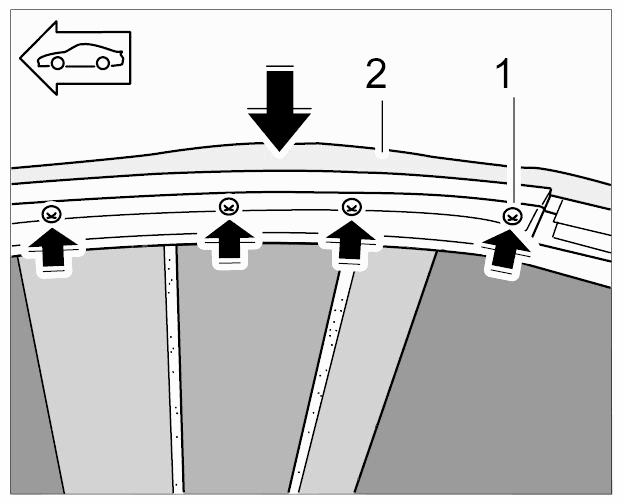

    3. Fig 2: Fastening Hood Covering At Sides Of Roof Frame
    G09590362Courtesy of PORSCHE CARS NORTH AMERICA, INC.
