Connecting Electric Plug Connection For Rear Window

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

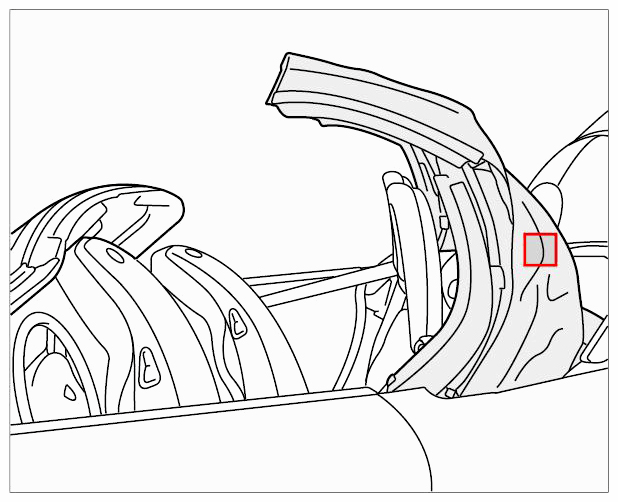

Fig 1: Identifying Hood Covering

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Electric plug connection for rear window not disconnected or connected correctly

Connector can break or become detached

→ Carefully pull off and connect plug coupling.

Carefully connect plug connection -2- on left and right to the connector -1- at the rear window.

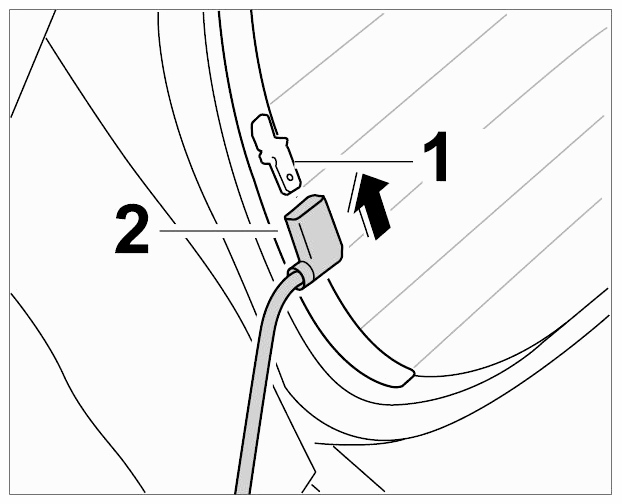

Fig 2: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
