Installing Seal For Cowl Panel Frame

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

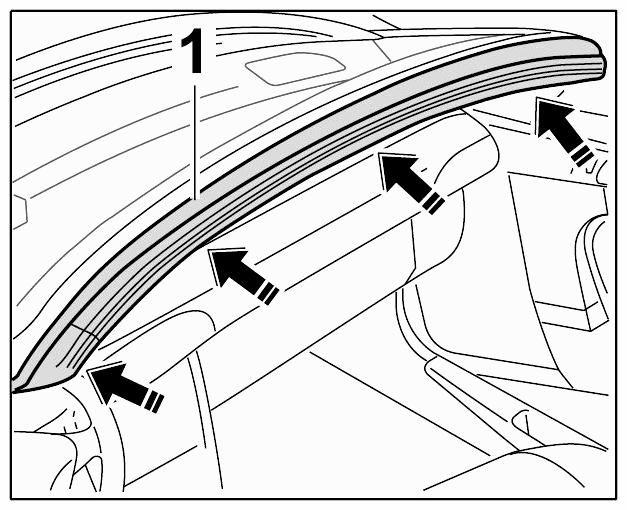

Place seal for cowl panel frame -1- on the sheetmetal flange on the cowl panel frame.

Fig 1: Installing Seal For Cowl Panel Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

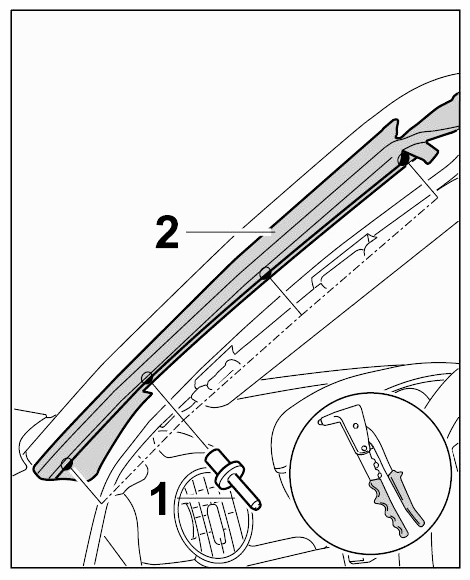

Position seal for cowl panel frame -2- at the left and right and secure with new rivets -1- .

Fig 2: Identifying Cowl Panel Frame Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

↓ Information

Make sure that the water drain is not trapped.

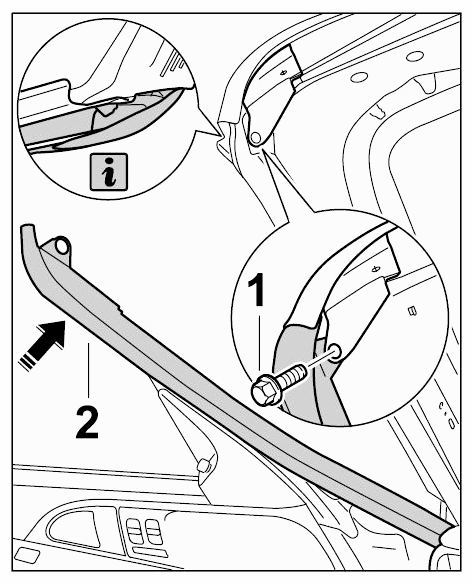

Press rubber seal for door -2- at the left and right onto the sheetmetal flange and slide in sheetmetal insert -Inset- .
Tighten fastening screw -1- . → Tightening torque: 6 Nm (4.5 ftlb.)

Fig 3: Securing Rubber Seal For Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
