Removing Convertible Top Lock

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

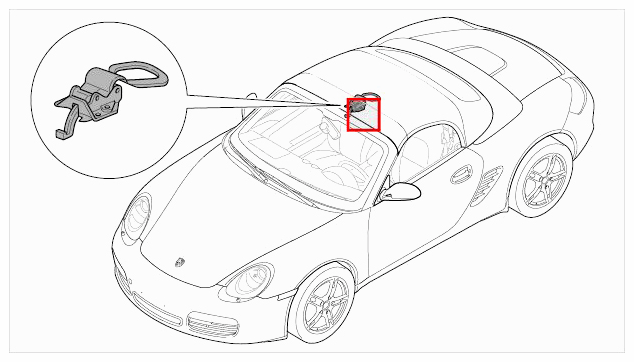

Fig 1: Identifying Removal Position Of Convertible Top Lock
G09590306Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew the four fastening screws -1-  .
  2. Remove convertible top lock -2-  from the roof frame -3-  in a downward direction -arrow-  .

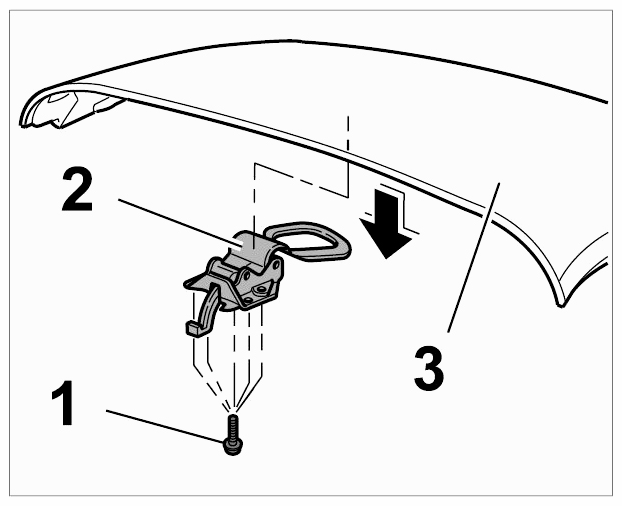

    3. Fig 2: Locating Convertible Top Lock Fastening Screws
    G09590307Courtesy of PORSCHE CARS NORTH AMERICA, INC.
