Loosening Roof Liner

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

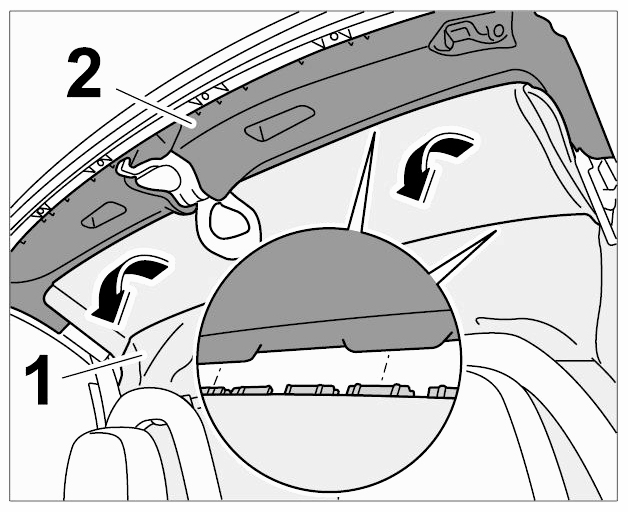

Unclip roof liner -1- downwards at front and in Centre from bar of roof frame -2- , starting from the outside.

Fig 1: Detaching Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

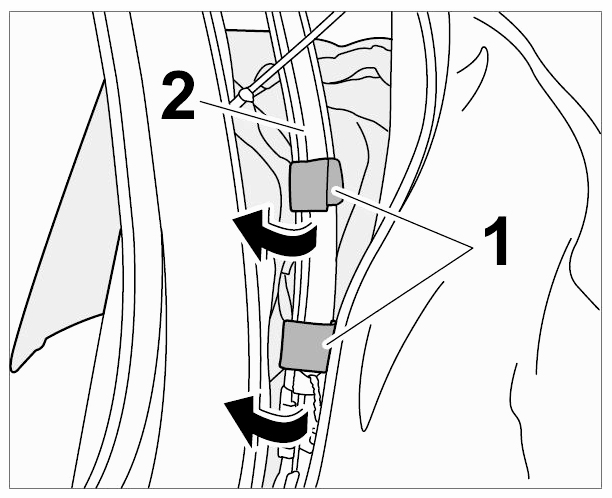

Open Velcro fasteners -1- on the push rod -2- right and left.

Fig 2: Loosening Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

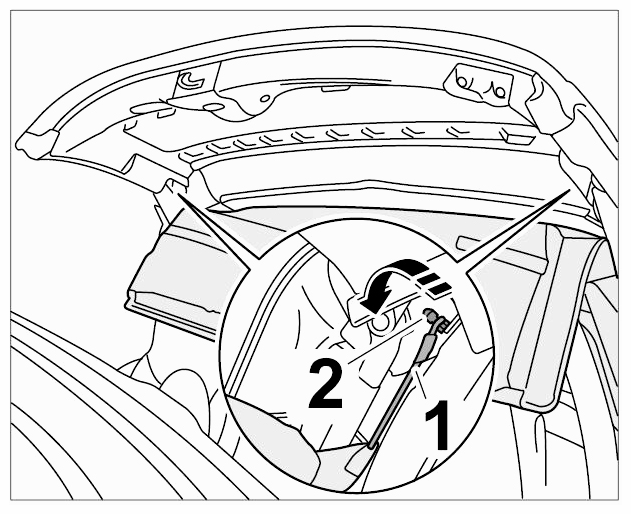

Disengage cord -1- of roof liner at the buffer -2- on the right and left B-pillar.

Fig 3: Disengaging Roof Liner Cord
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

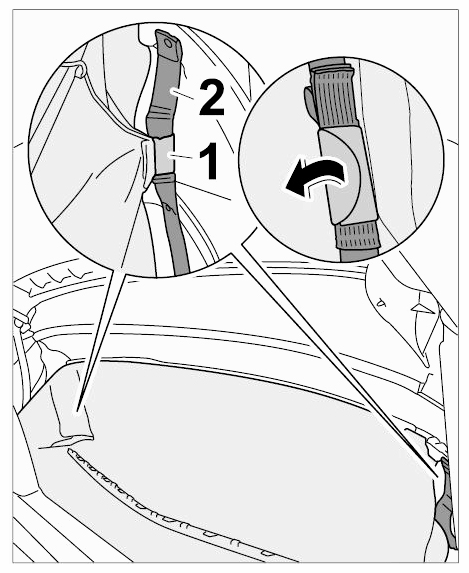

Open Velcro fastener -1- on tension strap -2- right and left.

Fig 4: Loosening Tension Strap Velcro Fastener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

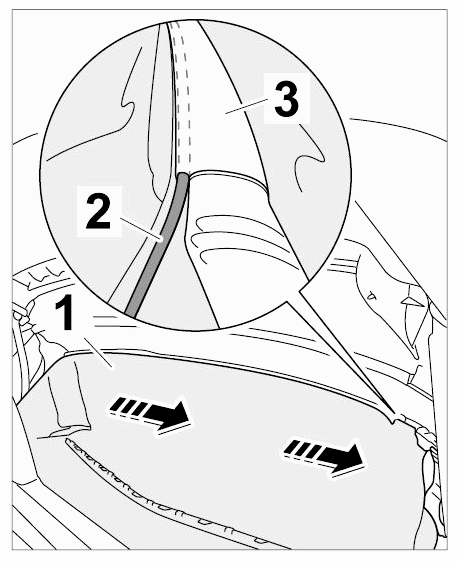

Remove surrounding section -1- of roof liner -2- from corner bow -3- .

Fig 5: Removing Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

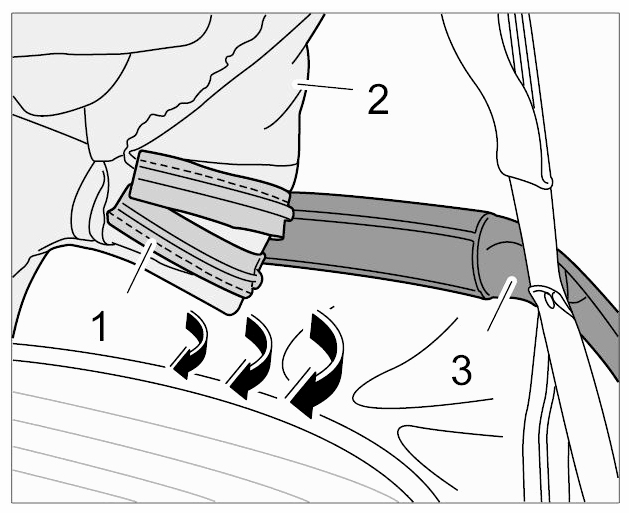

Pull out tightening strip -2- of roof liner -1- outwards from main folding top bow -3- .

Fig 6: Removing Roof Liner And Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
