Fastening Roof Liner Connection To Tension Bow

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press plastic expansion rivets -1-  at the roof liner connection -2-  through the fastening holes of the cloth into the tension bow -3-  on the left and right.

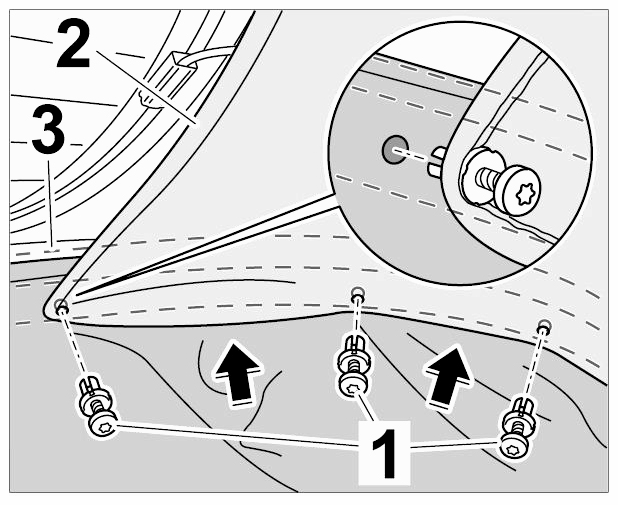

    Fig 1: Identifying Roof Liner Connection And Plastic Expansion Rivets
    G09590264Courtesy of PORSCHE CARS NORTH AMERICA, INC.
