Tools And Materials
WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

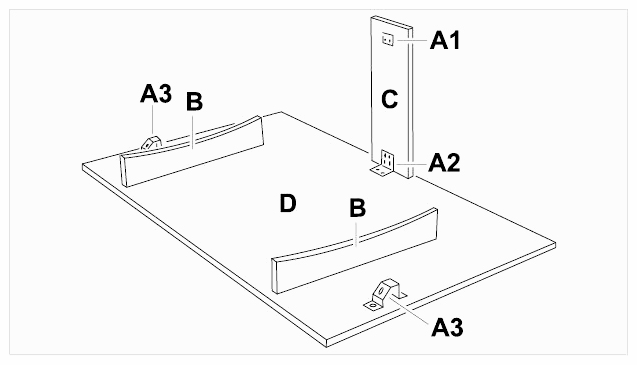

The following tools and materials are required to construct the fixture for work in the inner area:
| Item | Designation | Explanation |
|---|---|---|
| Drill | ||
| Drill bit 6 mm | ||
| Drill bit 3 mm | ||
| Sabre saw | ||
| Measuring tape | ||
| B | Support cheek (2x) | Multiplex plate 25 mm thick, 600 x 120 mm |
| C | Swivel arm 1x) | Multiplex plate 25 mm thick, 550 x 200 mm |
| D | Base plate (1x) | Wood-core plywood 19 mm thick, 1500 x 900 mm |
| All materials listed are commercially available. | ||
| Mounting component 9620 | → "Special tool ; Workshop Equipment Manual" | |
| Set of fittings includes: | ||
| A1 | Retaining bracket (1x) | |
| A2 | Hinge (1x) | |
| A3 | Base (2x) | |
| A4 | Straight pin 6 M6 x 40 (6x) | |
| A5 | Countersunk screw 4.5 x 20 (8x) | |
| A6 | Countersunk screw 6 x 20 (2x) | |
| A7 | Countersunk screw 6 x 20 with disc (4x) | |
