Ending Convertible Top Service Position

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

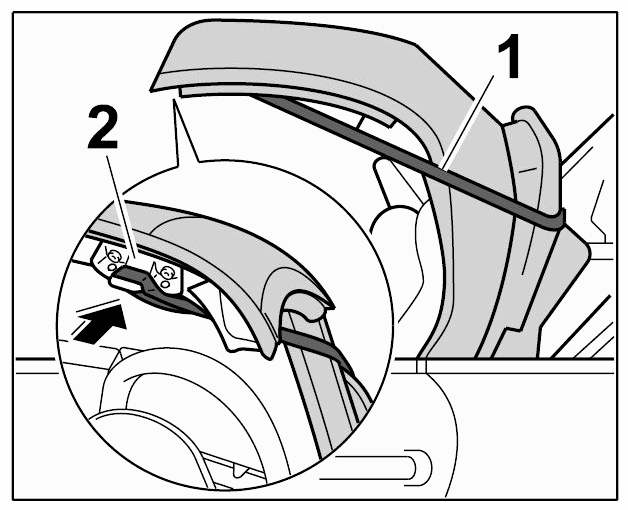

  1. Disengage retaining strap -1-  at the front at the centering journal -2-  and fasten Velcro fastener of retaining strap to the tension bow.
    Fig 1: Locating Retaining Strap And Centering Journal
    G09590161Courtesy of PORSCHE CARS NORTH AMERICA, INC.

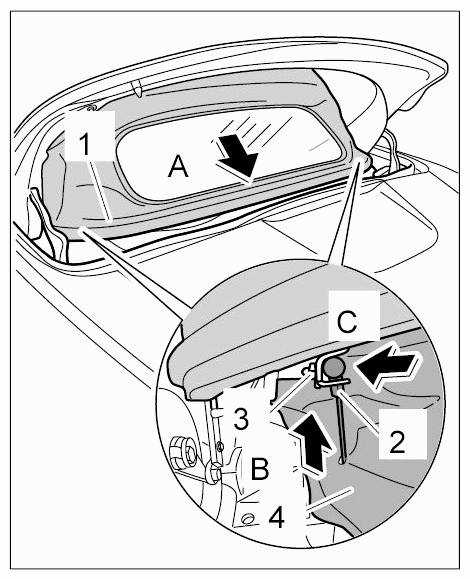

  2. Swivel convertible top -1-  down slightly at the rear (-Arrow A-)  . Pull tension cables -2-  at the left and right through the cloth covering -4- (-Arrow B-)  and press ball socket in at the adjusting piece -3- (-Arrow C-)  .
    Fig 2: Pressing Tension Cables
    G09590162Courtesy of PORSCHE CARS NORTH AMERICA, INC.

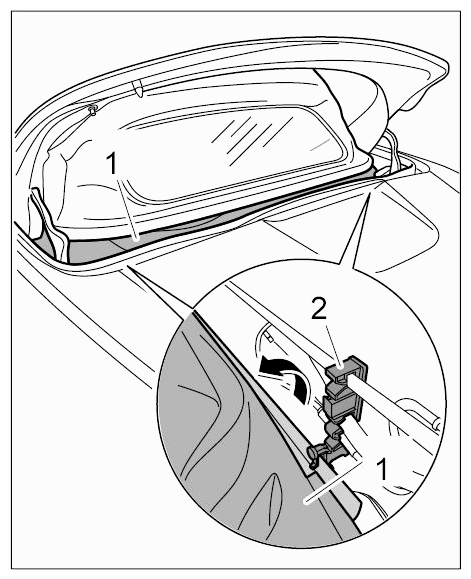

  3. Engage strip on cloth covering -1-  upwards into the combination holder -2-  at the left and right.
    Fig 3: Securing Cloth Covering
    G09590163Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Switch on ignition and move convertible top electrically to its original position.
  5. Switch off the ignition.
