Removing Convertible Top Frame
WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hood frame not removed/installed correctly
- Risk of damage to paintwork on roll-over bar
→ Only install the hood in the vehicle together with the roll-over bar.
→ A second person is required during removal/installation.
Information
- The hood frame can be removed from the roll-over bar complete with all hood bows and with the two hood supports.

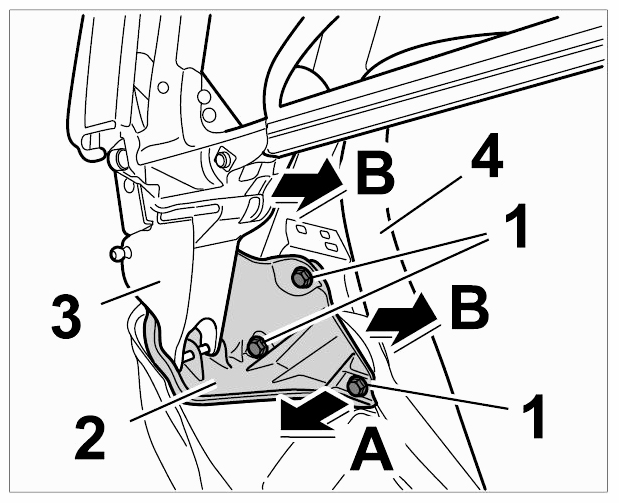

- Unscrew fastening screws -1- from the convertible top support -2- .
- Pull convertible top support -2- out by approx. 10 mm on both sides of the vehicle -arrow A- .
- Remove complete convertible top frame -3- with the two convertible top supports -2- by pulling it backwards -arrows B- off the roll-over bar -4- .
