Adjusting Convertible Top

Information

The tensioning elements of the weather protector fins must be adjusted so that there is a slight preload when the rear lid is closed completely.

The preload is set at the tensioning element joint by adjusting the holes on the convertible top covering.

• The preload must be equal on the left and right.

1. Open the rear lid -1- (-arrow A-)  .

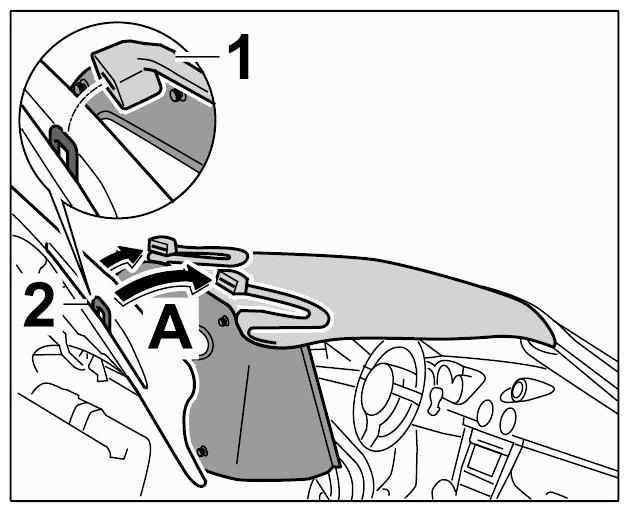

2. Unclip lid support -2-  from the rear lid and fit it into the mounting point at the left -3-  in front of the convertible top compartment -arrow B-  .

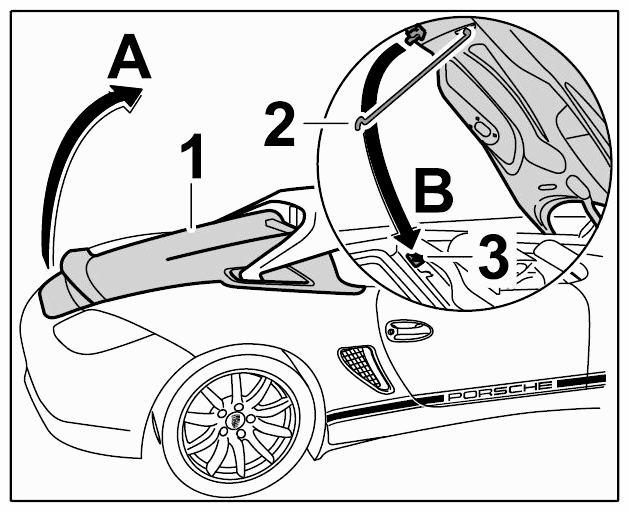

   Fig 1: Opening Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

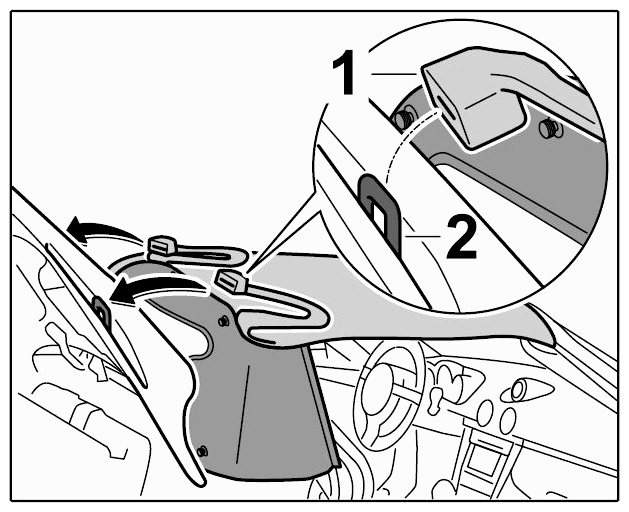

3. Pull tensioning elements for the weather protector fins -1-  off the red tension bars -2-  on the rear lid -arrows A-  .
   Fig 2: Unclipping Tensioning Elements

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

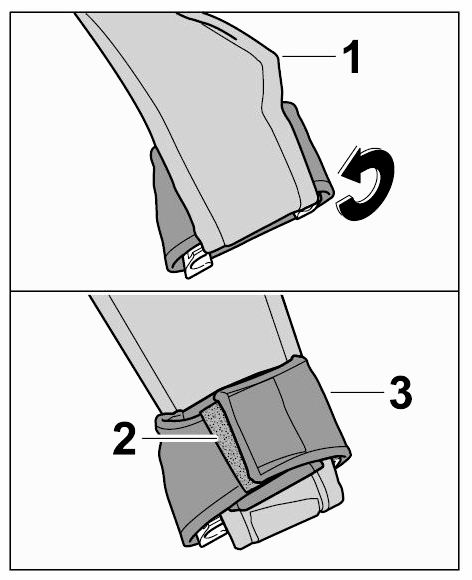

4. Fold over the convertible top covering -1- (-arrow-)  and open the Velcro fastener -2-  on the fabric cover -3-  .
   Fig 3: Loosening Velcro Fastener

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

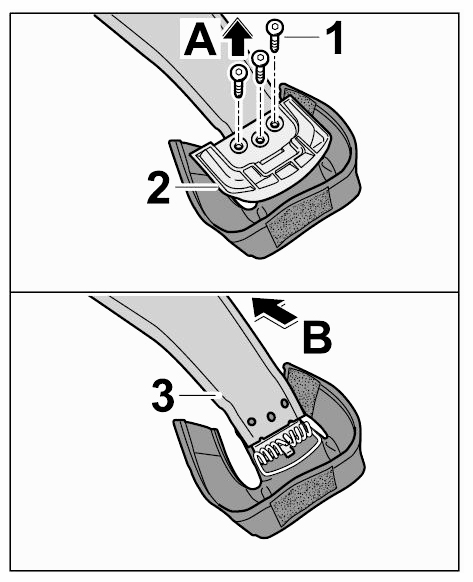

5. Unscrew fastening screws -1-  on the tensioning element -2-  and remove it -arrow A-  .
6. Take off the convertible top covering -3- (-arrow B-)  .
Fig 4: Removing Tensioning Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

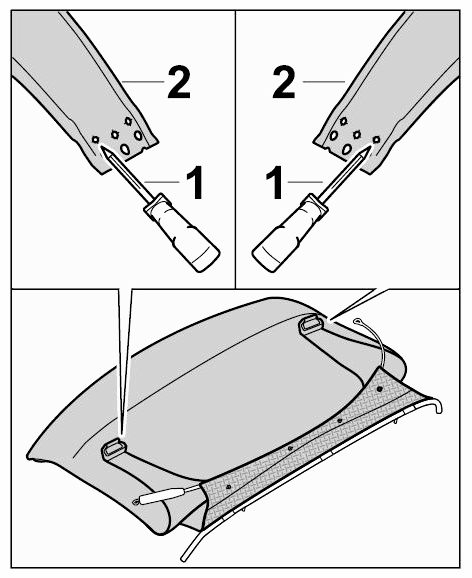

7. To increase the preload, use a scratch awl -1-  (or scissors) to move the holes on the convertible top covering -2-  inwards.
   Fig 5: Positioning Holes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

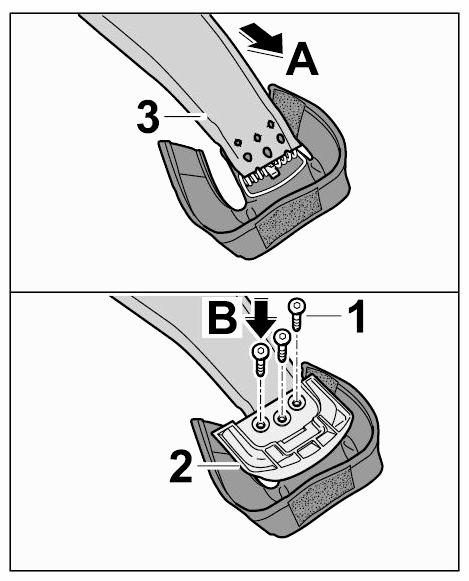

8. Position the convertible top covering -3-  on the fabric cover in such a way that the new holes are aligned with the bores in the spring plate -arrow A-  .
9. Position the tensioning element -2-  and secure with the fastening screws -1- (-arrow B-).
Fig 6: Securing Tensioning Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

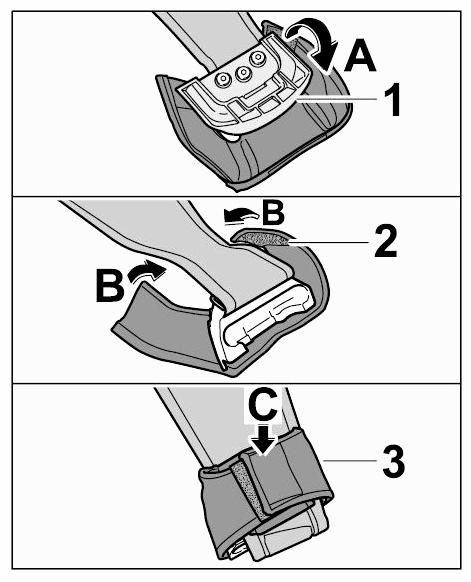

10. Fold the tensioning element -1-  over by 90° -arrow A-  .
11. Fold over the Velcro fastener -2-  on the fabric cover -3-  (-arrows B-  ) and press it on -arrow C-  .
    Fig 7: Securing Velcro Fastener

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Attach the tensioning element of the weather protector fins -1-  to the red tension bars -2-  on the rear lid -arrows-  until the tension elements lock with an audible click.
    Fig 8: Clipping In Tensioning Element

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

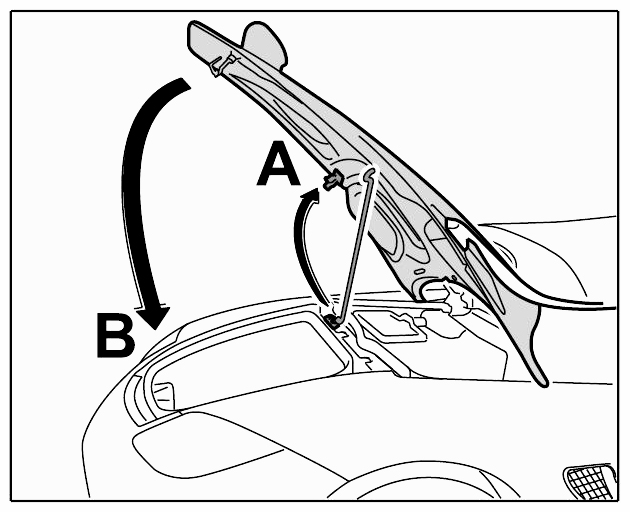

13. Lift the rear lid up slightly and clip the lid support into the mount on the rear lid -arrow A-  .
14. Close the rear lid -arrow B-  and press down on the lock area with the palm of your hand.
Fig 9: Closing Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
15. Check the preload and correct it if necessary.
