Adjusting Tension Ropes On The Hood Frame

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

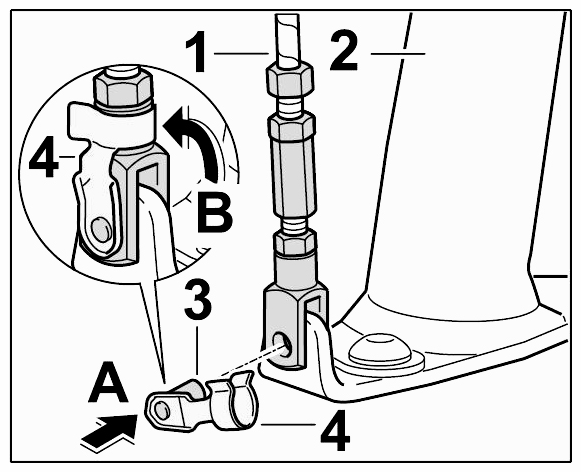

Fig 1: Identifying Installation Position Of Tension Rope

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position tension rope -1- on roll-over bar -2- and insert retaining pin -3- in -direction of arrow A- . Swivel clamp -4- in -direction of arrow B- and press it in on the tension rope.

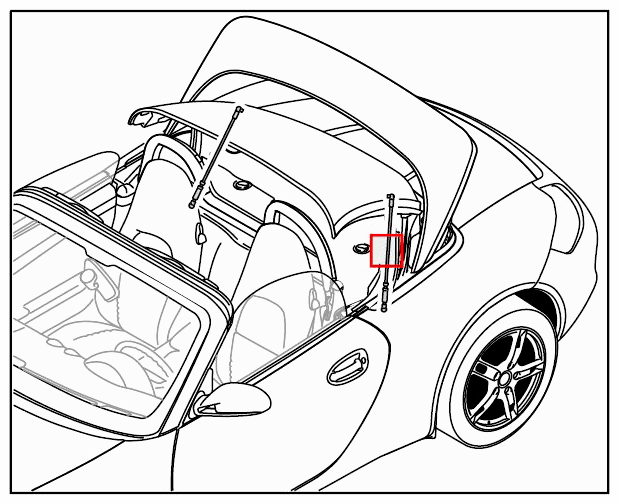

Fig 2: Installing Tension Rope On Hood Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen hexagon nuts -1 and 2- and adjust the contact pressure between the tension bow seal and the hood compartment lid by screwing the adjustment hexagon -3- in and out.
Counter the hexagon nut -1- for the adjusting hexagon -3- and counter the hexagon nut -2- for the mount -4- .

Adjust the contact pressure in such a way that a 0.5-mm bank card can be pulled between the tension bow seal and the sealing strip on the hood compartment lid on all sides.

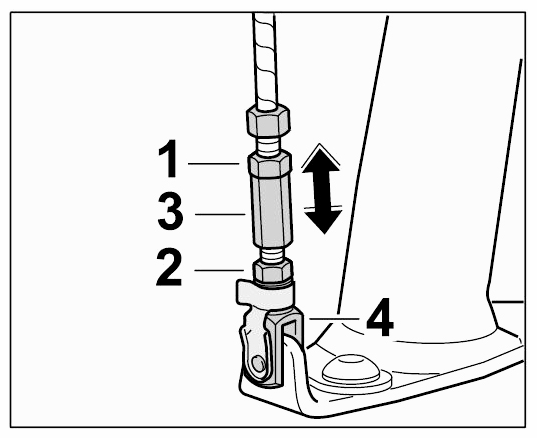

Fig 3: Adjusting Tension Ropes On Hood Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the hood completely and check the tension on the tension ropes manually through the cabin.
The tension ropes must be fully tensioned. Tighten them again if necessary.
