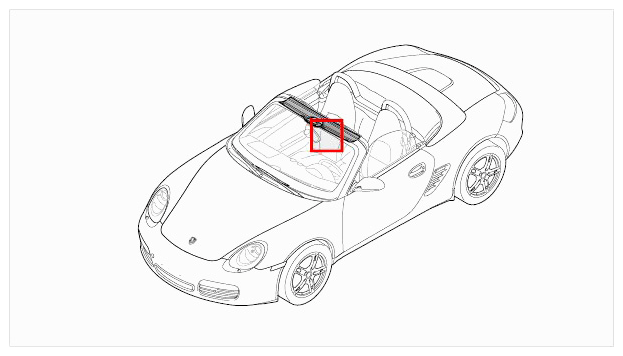

Installing Front Roof Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

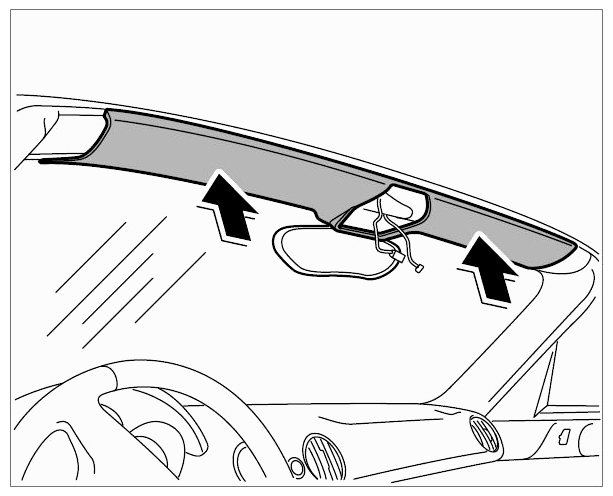

- Fit front roof trim panel to windscreen frame from below -arrows-
and clip it into position.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

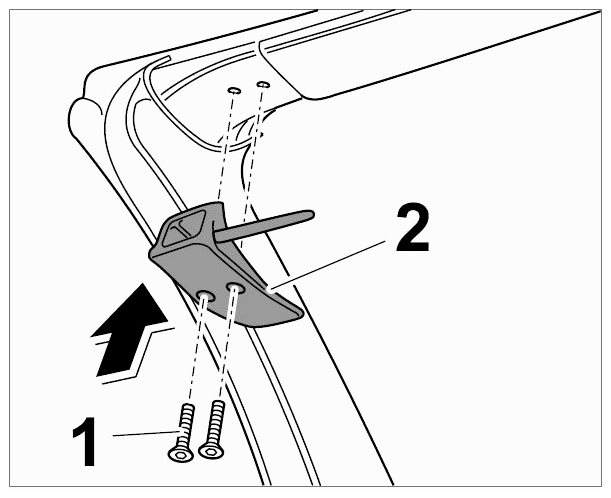

- Place convertible-top peg mount -2-
on windscreen frame from below -arrow-
, position it correctly and screw down hand-tight using the fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- To prevent rattling noises, the two convertible-top peg mounts (left and right) must be facing outwards with respect to the centring pins fitted on the convertible top or hardtop when tightening the screws. The convertible top must be closed or the hardtop must be fitted in order to check the adjustment.
- Tighten fastening screws -1-
. Tightening torque → Final tightening: 10 Nm (7.5 ftlb.)
