Installing Seat Cross Member

Fit the seat cross member to the body

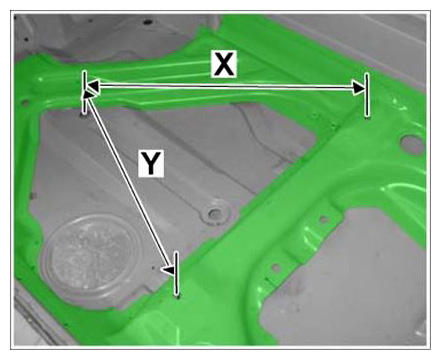

1. 1.1. Place the seat cross member on the body and adjust to the adjustment dimensions -X = 476 mm +/- 1 mm- and -Y= 426 mm +/- 1 mm- using a beam compass.
2. 1.2. Fix the seat cross member with tensioning clamps.
Fig 1: Identifying Seat Cross Member To Body Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

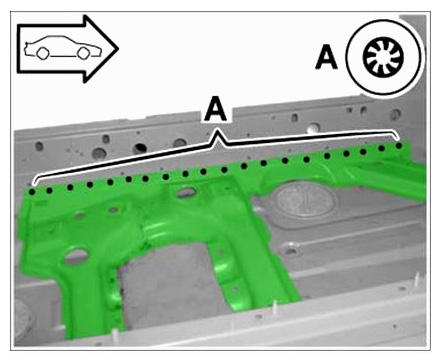

1. 2.1. Plug-weld the seat cross member in area -A- using inert gas.
Fig 2: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

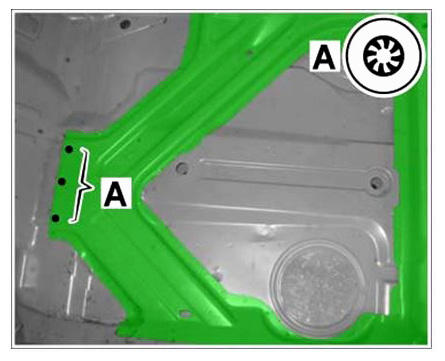

1. 3.1. Plug-weld the seat cross member in area -A- using inert gas.
Fig 3: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

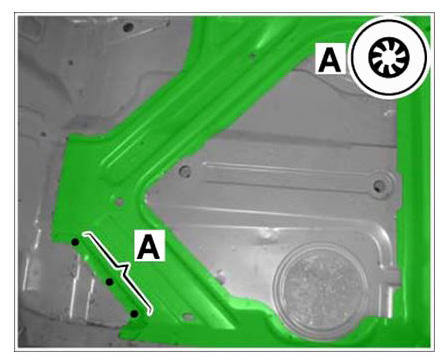

1. 4.1. Plug-weld the seat cross member in area -A- using inert gas.
Fig 4: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

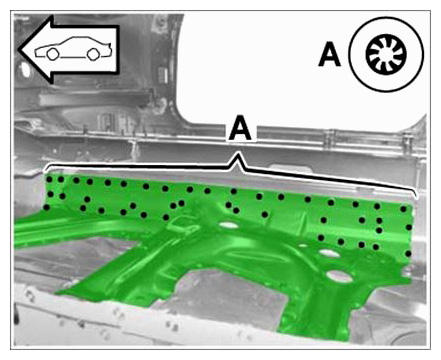

1. 5.1. Plug-weld the seat cross member in area -A- using inert gas.
Fig 5: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

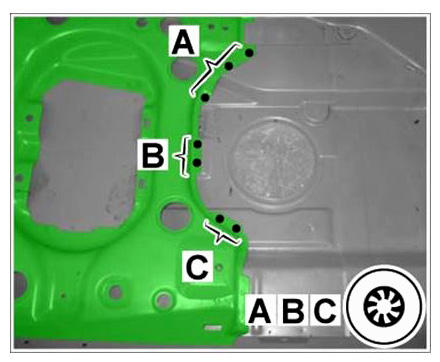

1. 6.1. Plug-weld the seat cross member in the areas -A, B, C- using inert gas.
Fig 6: Identifying Seat Cross Member Welding Area (A, B And C)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

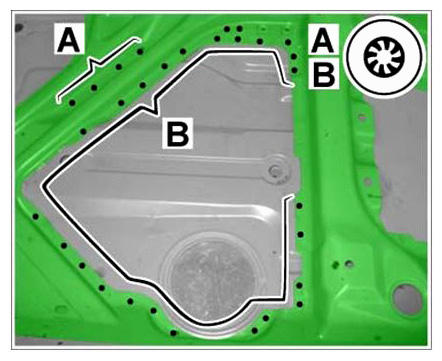

1. 7.1. Plug-weld the seat cross member in area -A- and -B- using inert gas.
Fig 7: Identifying Seat Cross Member Welding Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

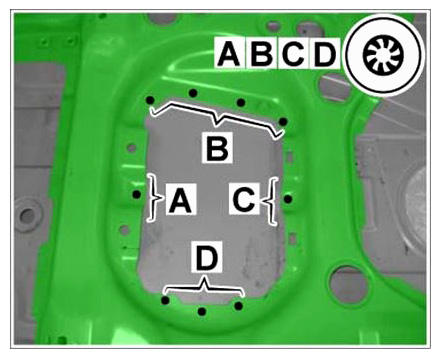

1. 8.1. Plug-weld the seat cross member in the areas -A, B, C, D- using inert gas.
Fig 8: Identifying Seat Cross Member Welding Area (A, B, C And D)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member
1. 9.1. Plug-weld the seat cross member in area -A- using inert gas.
Fig 9: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

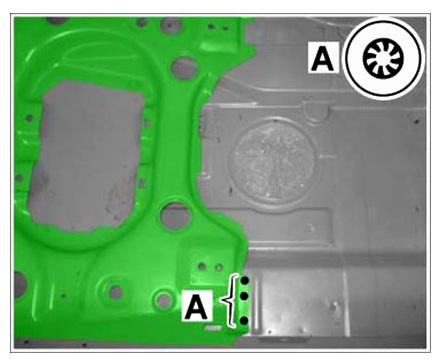

1. 10.1. Plug-weld the seat cross member in area -A- using inert gas.
Fig 10: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

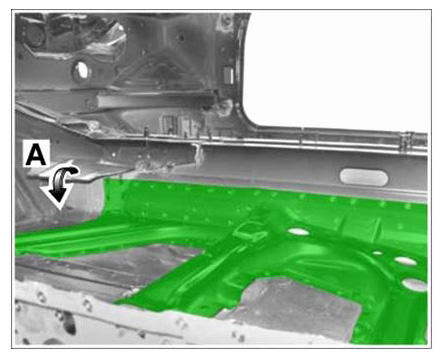

Bend reinforcement of center tunnel downward -arrow A- .

Fig 11: Bending Down Reinforcement On Centre Tunnel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

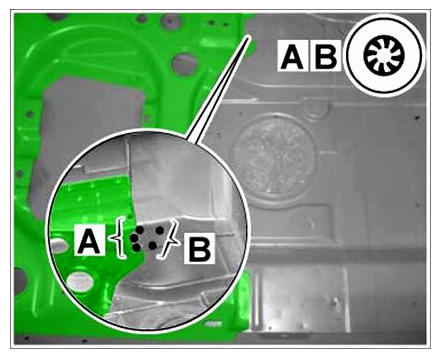

1. 12.1. Plug-weld the seat cross member in area -A- and -B- using inert gas.
Fig 12: Identifying Seat Cross Member Welding Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

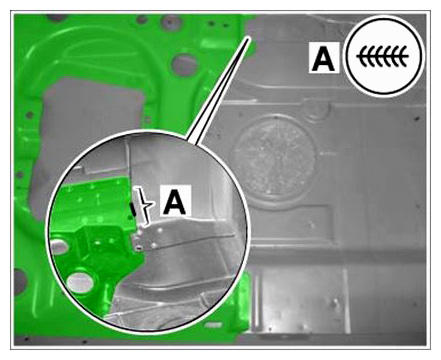

1. 13.1. Apply a full weld to the seat cross member in area -A- using inert gas.
Fig 13: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

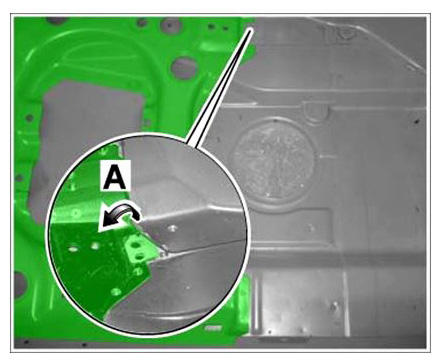

Bend reinforcement of center tunnel downward -arrow A- .

Fig 14: Bending Down Reinforcement On Centre Tunnel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

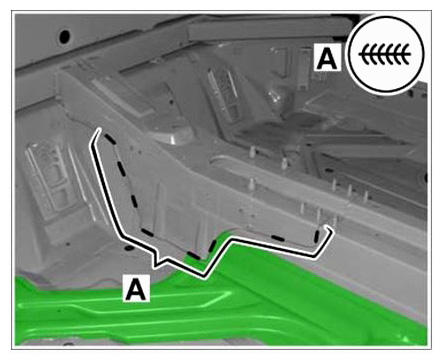

1. 15.1. Apply a full weld to the seat cross member in area -A- using inert gas.
Fig 15: Identifying Seat Cross Member Welding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

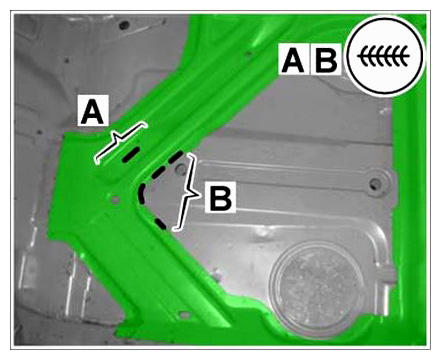

1. 16.1. Apply a full weld to the seat cross member in area -A- and -B- using inert gas.

  Fig 16: Identifying Seat Cross Member Welding Area (A And B)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in seat cross member

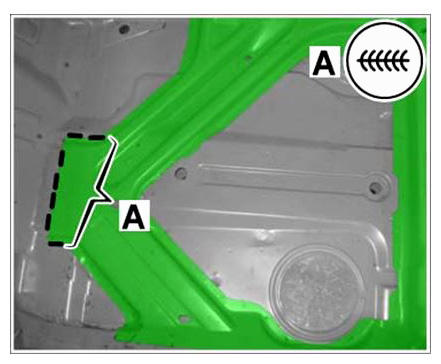

1. 17.1. Apply a full weld to the seat cross member in area -A- using inert gas.

  Fig 17: Identifying Seat Cross Member Welding Area (A)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
