Checking Brake Fluid Level

Visually inspect brake fluid level. The brake fluid level must be between the MAX and MIN markings. The brake fluid reservoir is located under the left plenum panel cover -arrow-  .

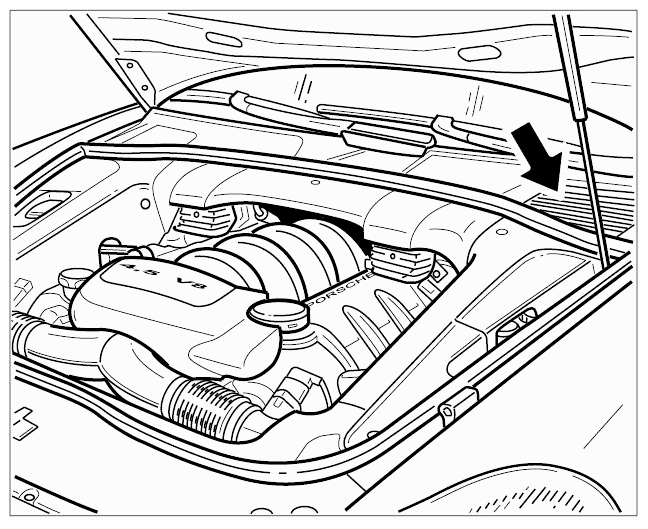

Fig 1: Locating Brake Fluid Reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The brake fluid level must not exceed the MAX mark.
• Observe brake fluid quality. Use only new DOT 4 brake fluid.
• This brake fluid is available under the following part numbers: Quantity supplied: 1 litre = 000.043.203.66; 30 litres = 000.043.203.67.
