Preparing Connection Areas Of Body For Installing Side Section Lower Part

Clean welding and sealing areas.
1. 1.1. Clean the body connection flanges of undersealing, adhesive residue and paint in the marked areas using a hot-air gun or rotary brush. Grind the connection flange until bare.

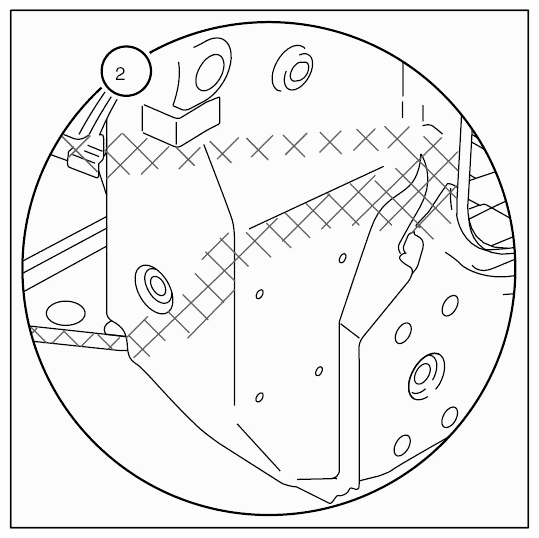

  Fig 1: Identifying Undersealing Area On Body Connection Flange (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

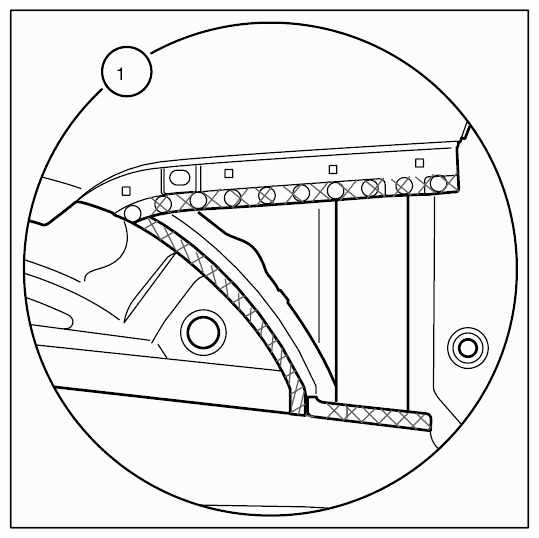

  Fig 2: Identifying Undersealing Area On Body Connection Flange (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
