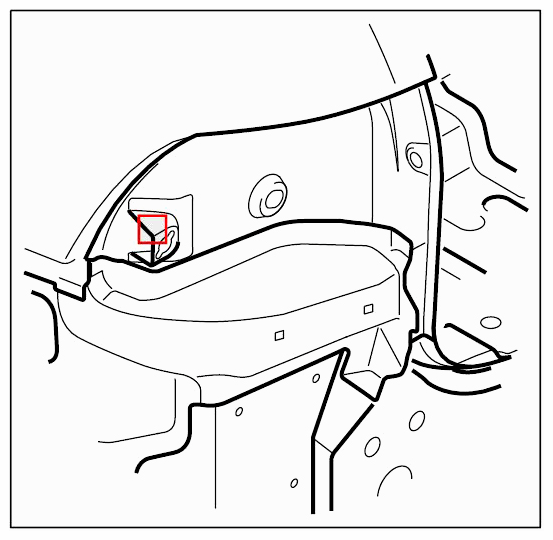

Adjusting Connection Points For Tail Light
- Mark drill holes on the bracket.
- 1.1. Put spacing plate -1- in position.
- 1.2. Mark the centre of the holes with a marking tool.
- Drill holes in the bracket.
- 2.1. Drill holes -L, M- , → Bore: 8 mm .
- 2.2. Drill hole -K- , → Bore: 22 mm .
- 2.3. File out the transitions between the holes.
- Fit retainer plate → 943119 REMOVING AND INSTALLING TAIL LIGHT .
- Mark drill holes on sealing channel.
- 4.1. Transfer the dimensions illustrated to the sealing channel. (The centre of the illustrated control bore serves as the reference point)
-O = 50 mm- → Gap dimension: 50 mm
-P = 25 mm- → Gap dimension: 25 mm
-Q = 14.5 mm- → Gap dimension: 14.5 mm
-R = 4 mm- → Gap dimension: 4 mm
- 4.1. Transfer the dimensions illustrated to the sealing channel. (The centre of the illustrated control bore serves as the reference point)
- Drilling holes in sealing channel
- 5.1. Drill holes -S- , → Bore: 10 mm .
- 5.2. Drill holes -T- , → Bore: 10 mm .
