Installing Lock Carrier

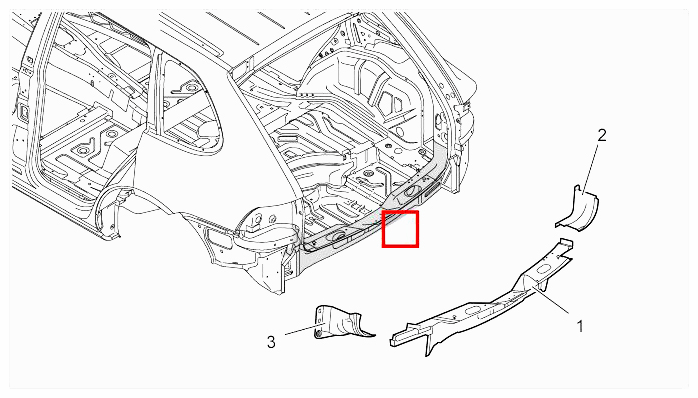

Fig 1: Identifying Installation Position Of Lock Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock carrier
D-pillar gusset plate, right
D-pillar gusset plate, left

Fit lock carrier to the body.
1. 1.1. Position the lock carrier on the body and fix in place with tensioning clamps.

  Fig 2: Identifying Position Of Lock Carrier On Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in inner lock carrier in area of D-pillar reinforcement and right side floor section.

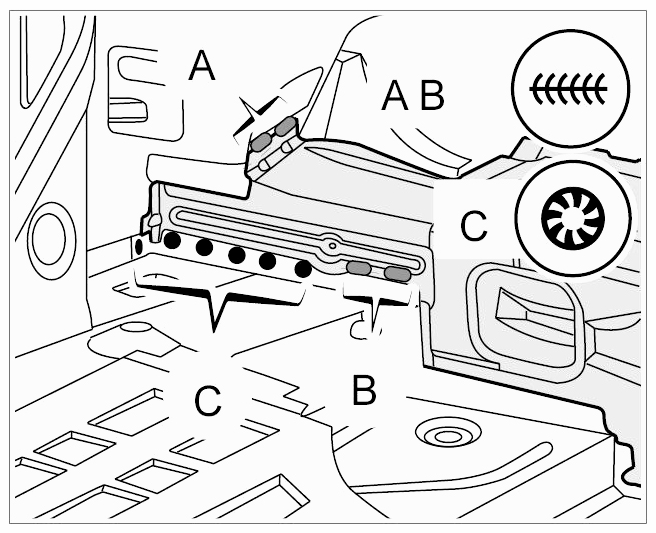

1. 2.1. Weld the lock carrier in areas -A and B- using inert gas.

  Fig 3: Identifying Welded Joints On Right Inner Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Plug-weld the lock carrier in area -C- using inert gas.
Weld in inner lock carrier in area of D-pillar reinforcement and left side floor section.

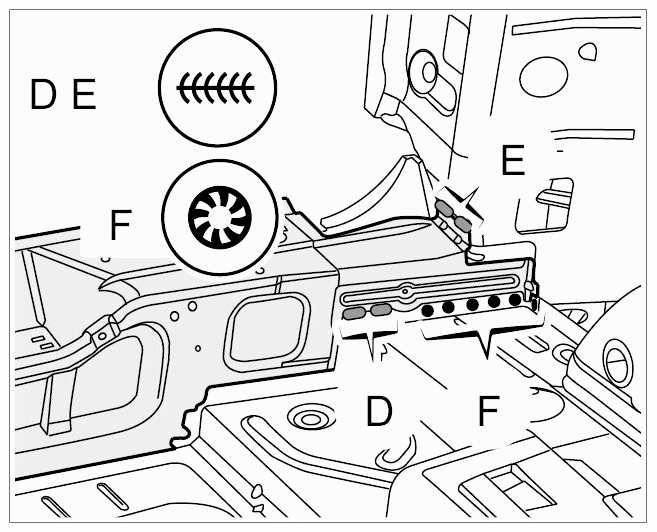

1. 3.1. Weld the lock carrier in areas -D and E- using inert gas.

  Fig 4: Identifying Welded Joints On Inner Left Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Plug-weld the lock carrier in area -F- using inert gas.

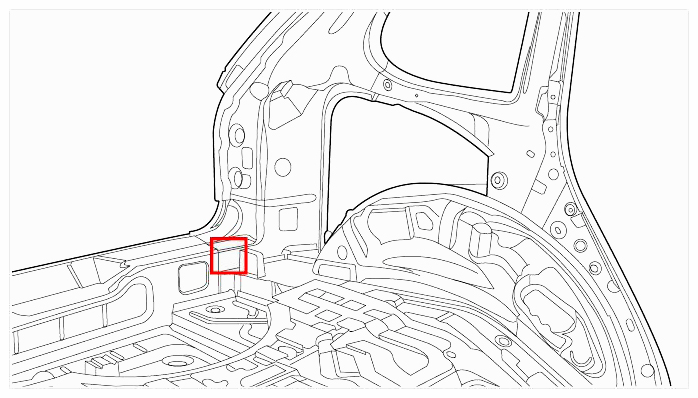

  Fig 5: Identifying Plug-Weld Lock Carrier In Working Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in outer lock carrier in right side member area.
1. 4.1. Resistance spot-weld the lock carrier in areas -G- .

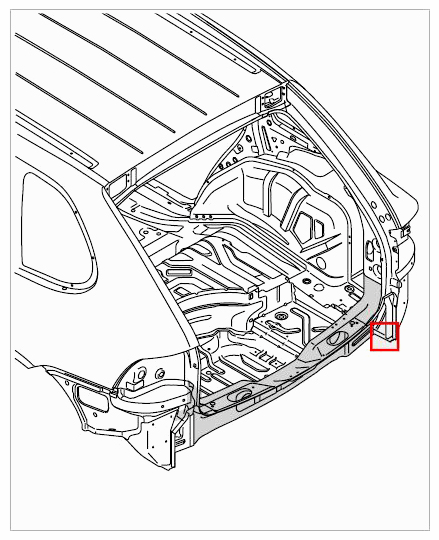

  Fig 6: Identifying Welded Joints On Right Outer Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Weld lock carrier in area -H- using inert gas.

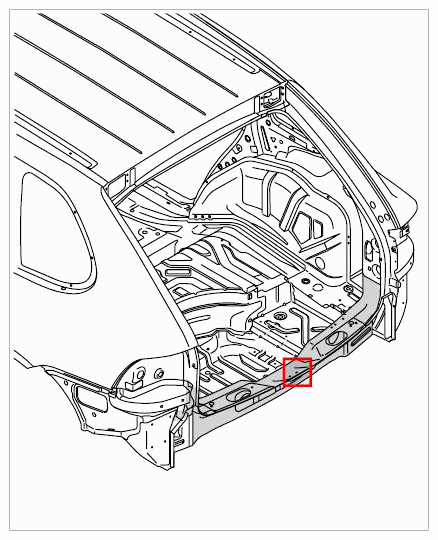

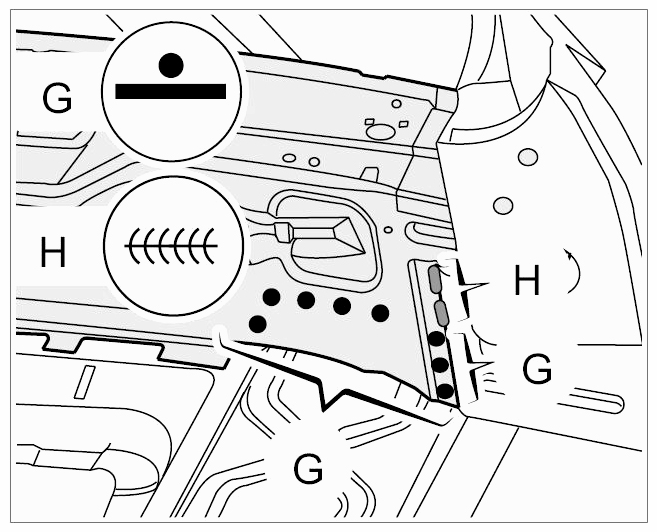

  Fig 7: Identifying Weld Lock Carrier In Working Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in lock carrier in spare-wheel well area.

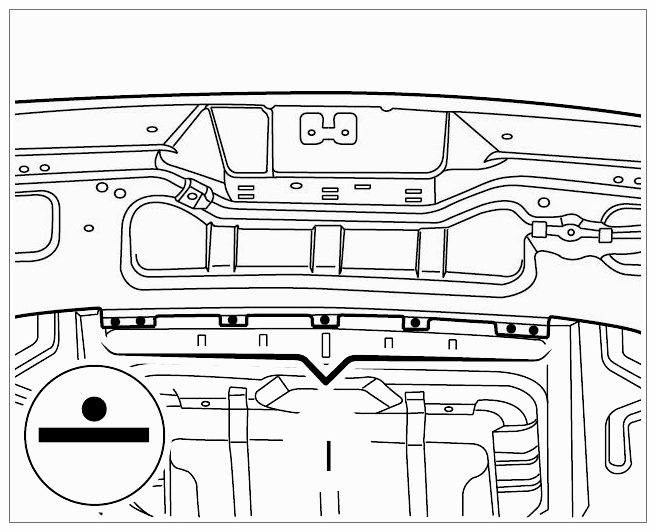

1. 5.1. Resistance spot-weld the lock carrier in area -I- .

  Fig 8: Identifying Welded Joints On Outer Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

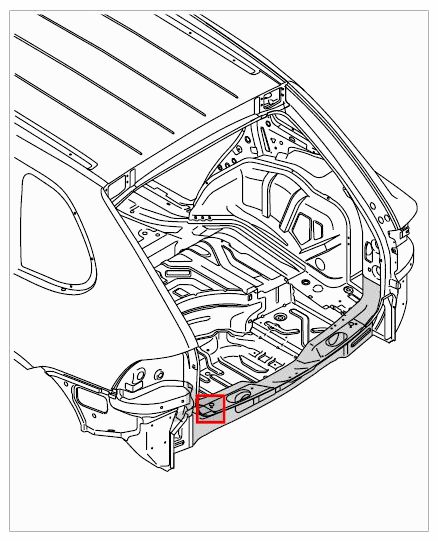

  Fig 9: Identifying Spot-Weld Lock Carrier In Working Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in outer lock carrier in left side member area.

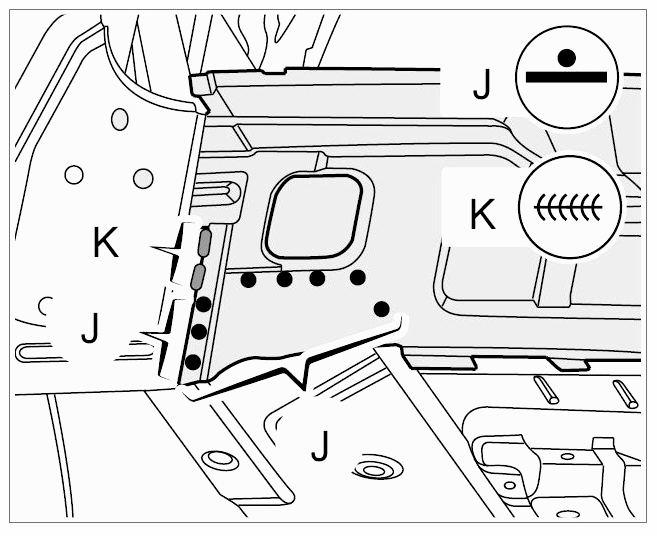

1. 6.1. Resistance spot-weld the lock carrier in areas -J- .

  Fig 10: Identifying Welded Joints On Left Outer Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Weld lock carrier in area -K- using inert gas.
Fit D-pillar gusset plates on the body.
1. 7.1. Position D-pillar gusset plates on the body and fix in place with tensioning clamps. Ensure that the D-pillar gusset plates are positioned flat at the connection point for the end plate.

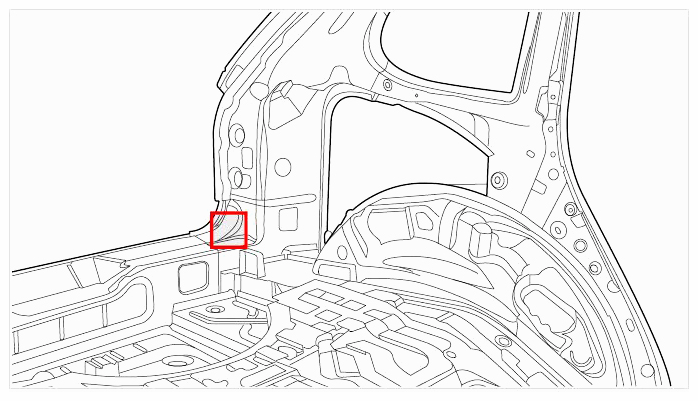

  Fig 11: Identifying D-Pillar Gusset Plates On Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in D-pillar gusset plates.

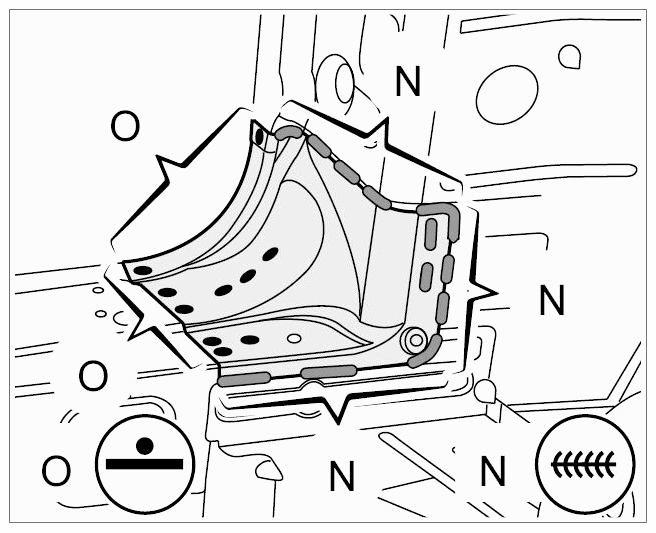

1. 8.1. Weld D-pillar gusset plates in areas -L- and -N- using inert gas.

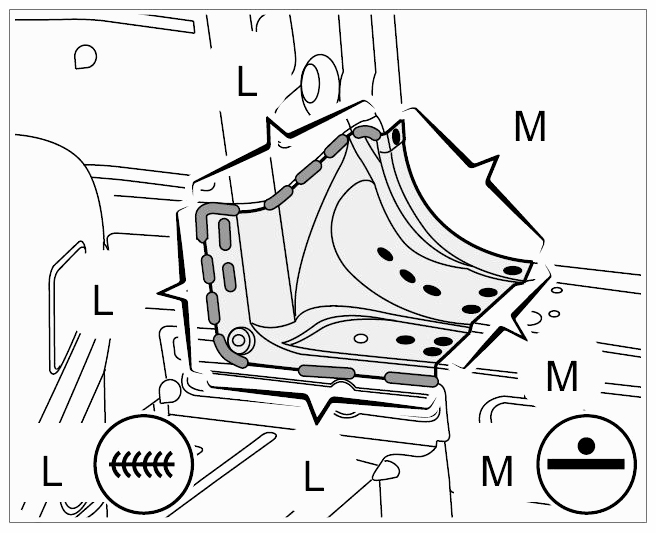

  Fig 12: Identifying Welded Joints On Right D-Pillar Gusset Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 13: Identifying Welded Joints On Left D-Pillar Gusset Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Resistance spot-weld the D-pillar gusset plates in areas -M- and -O- .
Install end plate. → 530555 REPLACING END PLATE
