Installing Closing Panel

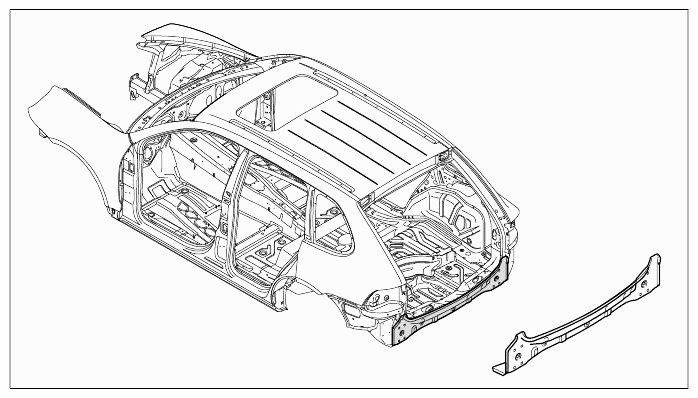

Fig 1: Identifying End Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit the closing panel to the body.
1. 1.1. Position the closing panel on the body and fix in place with tensioning clamps. Ensure that the closing panel is positioned flat at the connection point for the bumper.
Resistance spot-weld the closing panel.
1. 2.1. Resistance spot-weld the closing panel in areas -A, B- (-A, B- ) and -C, D- .

  Fig 2: Identifying Spot-Welding Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

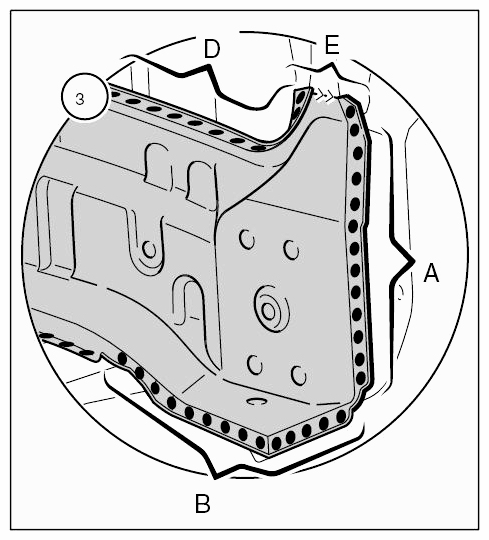

  Fig 3: Identifying Spot-Welding Areas (A, B And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

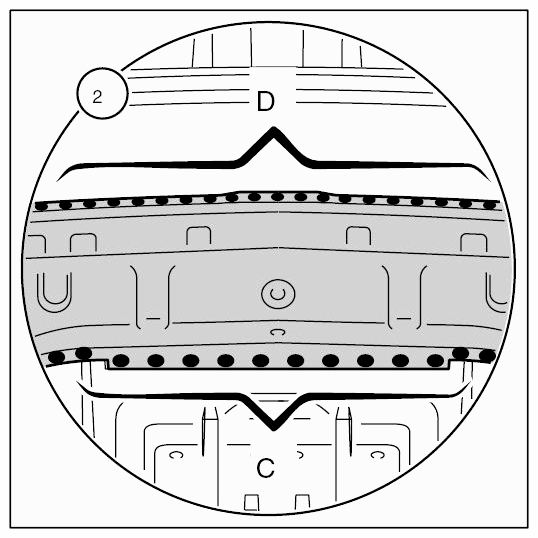

  Fig 4: Identifying Spot-Welding Areas (C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

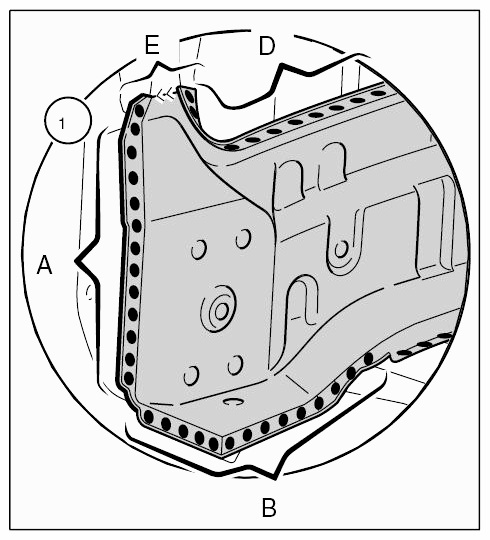

  Fig 5: Identifying Spot-Welding Areas (B, E And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inert gas arc weld the closing panel.
1. 3.1. Inset gas arc weld the closing panel in the area -E- (-E- ) with a full weld.
