WM 468356 Replacing Brake Shoes (All Models): Replacing: Installing

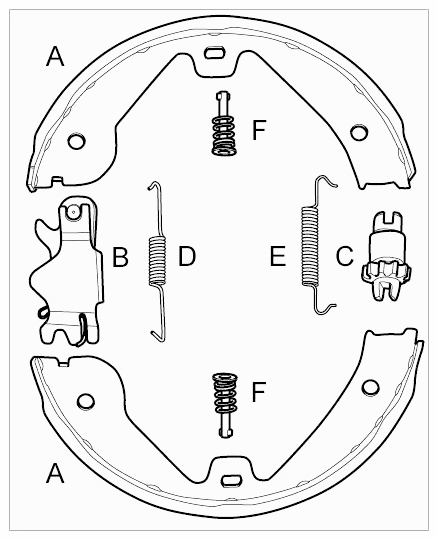

Fig 1: Overview For Parking Brake Component

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

Installation is performed in reverse order.

Align the entire unit in the middle.

Observe correct tightening torques.
