Installing Front Brake Cable

Lay the brake cable under the wiring harness -arrow- and under the air guide -arrow- .

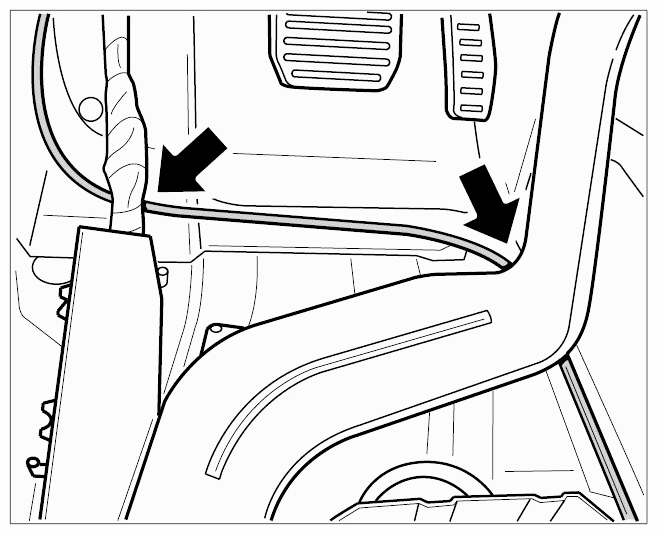

Fig 1: Locating Brake Cable Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the ball head to the latch on the actuating pedal. Make sure that the securing lug is not damaged.
Push the ball head into the latch on the deflector. To do this, see Fig 2 use an open-ended wrench (a/f 22) on the deflector hexagon and turn it until the end of the cable can be inserted.

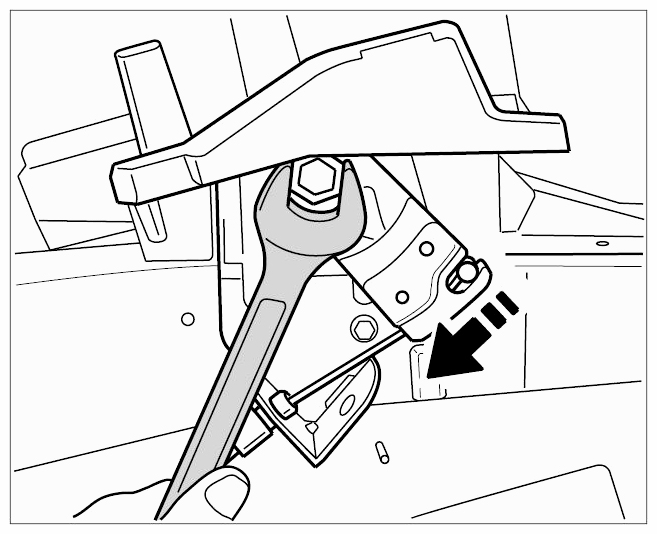

Fig 2: Pushing Ball Head Into Latch On Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage the → see Fig 3 securing clip into the bracket on the deflector and make sure it is fitted correctly. Observe the following note for this purpose:

Fig 3: Securing Clip Into Bracket On Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Damaged securing clips must be replaced. The brake cable can become detached if the securing clip is defective.
- Pass securing clip behind brake cable.

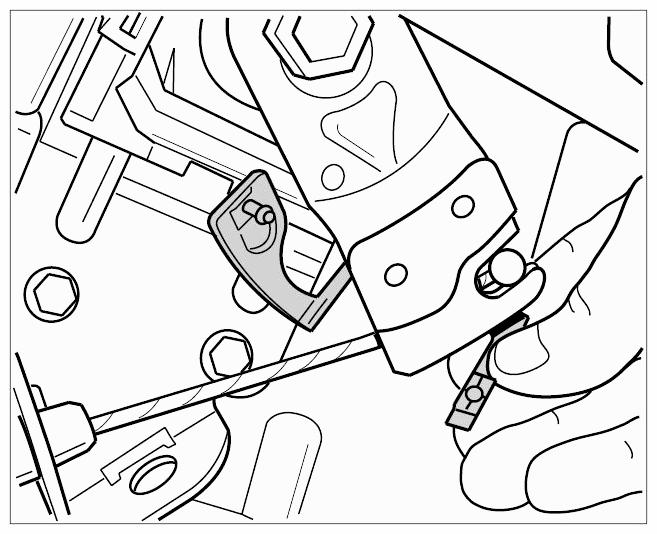

  Fig 4: Securing Clip Behind Brake Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Clip in securing clip -direction arrow- .

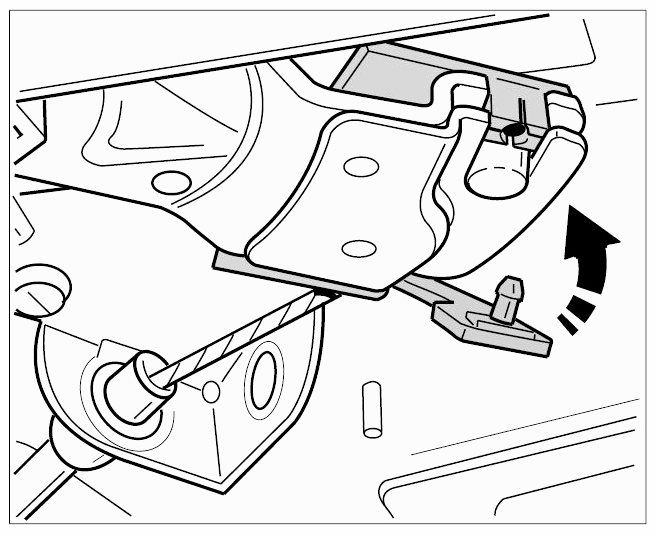

  Fig 5: Securing Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- → see Fig 6 Securing clip in end position.

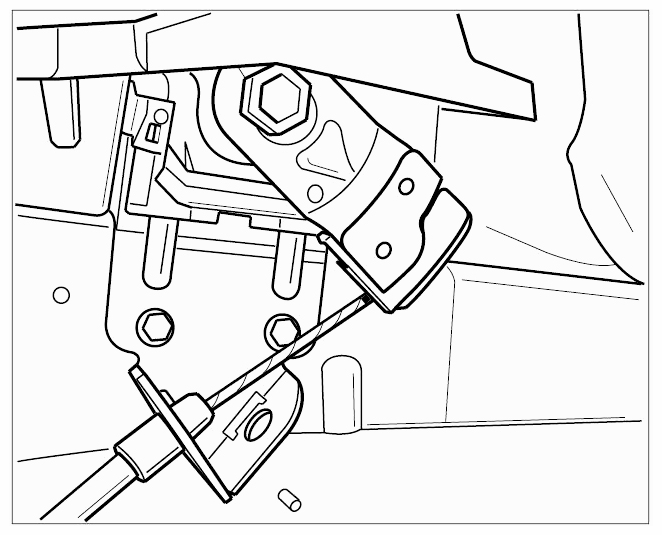

  Fig 6: Securing Clip End Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover of driver's footwell → Installing cover under dashboard .
Perform a function test.
