Removing PCCB Brake Disc

Remove the wheel. Use assembly aids (assembly pins) -1-  . → Removing and installing wheel .

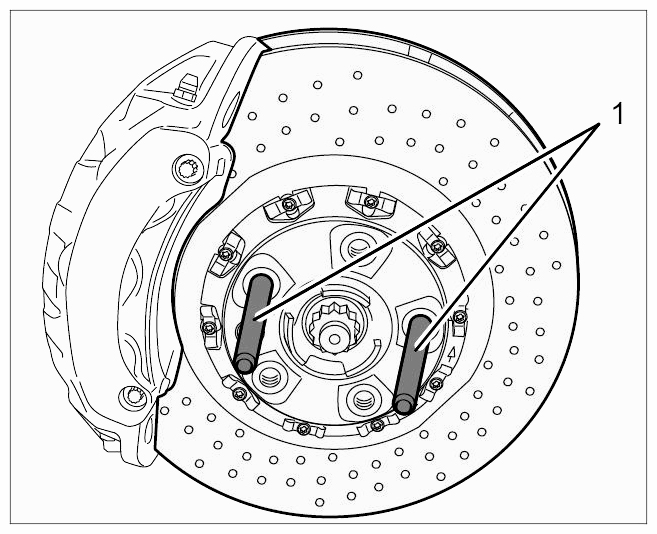

Fig 1: Identifying PCCB Brake Disc And Calliper
G09419568Courtesy of PORSCHE CARS NORTH AMERICA, INC.
