Explanation Of 2-Part Brake Disc

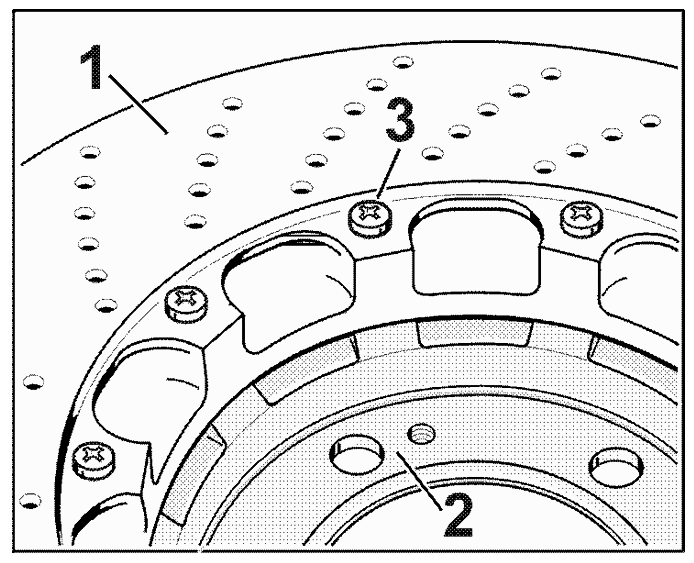

- The PCCB brake discs consist of two parts on the front and rear axles. The brake disc -1-
is screwed to the brake-disc chamber -2-
with 10 screws (M6) -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Only the complete brake disc is available as a spare part (disc + brake-disc chamber)!
- Do not separate the brake-disc chamber -2-
and brake disc -1-
. In addition, the screws -3-
must not be turned and should not need to be turned. The screws are prevented from turning by compression in the bushing.
- It is essential that the tightening torque of the 10 screws is not changed (do not turn the screws) as this will have a negative effect on the sound behaviour.
| 1 |
Brake disc |
| 2 |
Brake-disc chamber |
| 3 |
Screw (10 ea.) |
