Replacing Brake Discs (Notes/Decision-Making Aid)
When replacing brake discs as a result of wear (see wear assessment) both brake discs must be replaced on an axle!
Irrespective of wear, a brake disc change may be necessary due to edge damage on the brake disc friction surfaces! In this case, only one brake disc can be replaced if the friction surface of the other PCCB brake disc is still 'as new' → Checking Information On PCCB Brake Discs .

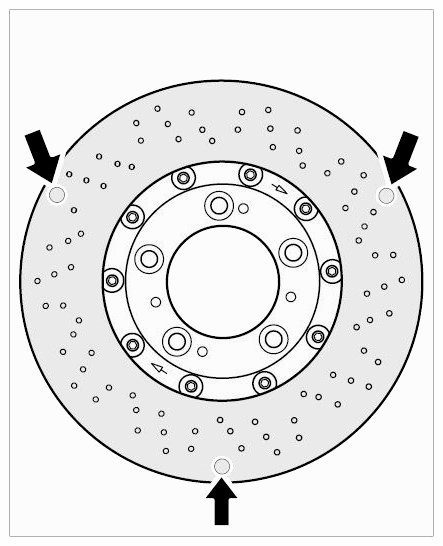

The wear indicator plates (six on each brake disc) are arranged close to the outer diameter, offset by 120 ° -arrows- at three points. The three wear indicator plates on each friction surface (3 on the inside and 3 on the outside) are positioned directly opposite each other. Each wear indicator is approx. 2 cm2 . The wear indicators are barely visible on new brake discs.
The minimum brake disc thickness (wear dimension) is stamped on the brake-disc chamber (e.g. Min. Th. 37.7 mm).
