WM 461019 Removing And Installing Mounting Saddle (All Models): Installing
- Re-fit the mounting saddle.

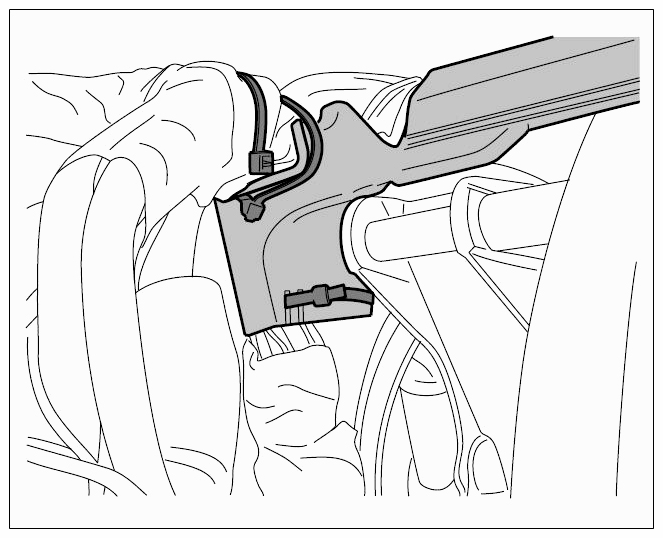

- Secure cable duct on new mounting saddle and pre-fit the tie-wraps!
- Tilt mounting saddle against the direction of travel and fit it underneath first, then guide the mounting saddle into position. Check that the cables are routed correctly (cable duct).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Fit the mounting saddle (all four attachment points!).
- Fit the brake booster. Then pull the dust boot over the push rod. Ensure it is seated correctly!
- Fit bracket (support) on crash support on the mounting saddle.
- Secure main wire harness in the cable duct using the tie-wraps and then clip on the cable duct cover.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Secure main wire harness on cable duct.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
