Installing Padding For Front Backrest

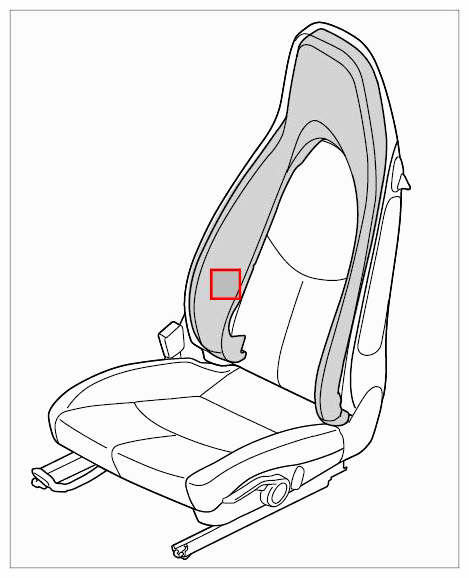

Fig 1: Identifying Installation Position Of Padding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Sealing surface of backrest frame must be clean and free of grease.

1. Apply adhesive -1-  to the marked area of the padding -2-  .

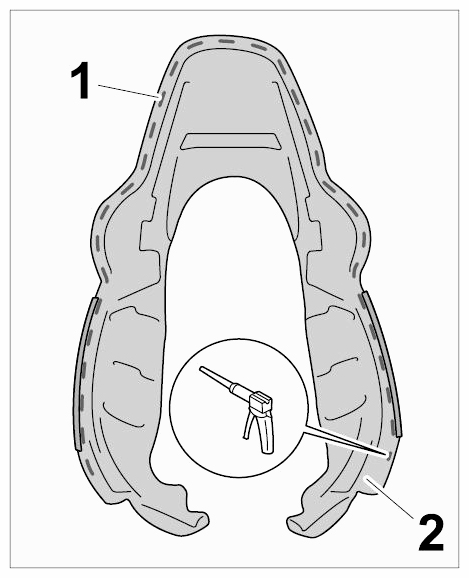

   Fig 2: Identifying Adhesive Applying Marked Area Of Padding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Place padding -1-  on the cushion carrier -2-  and align it with the cushion carrier.

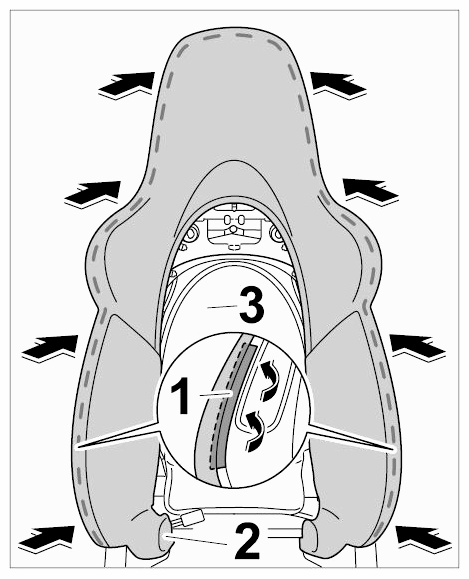

   Fig 3: Installing Padding On Cushion Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 1: Identifying Installation Position Of Padding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Sealing surface of padding must be clean and free of grease.

1. Apply adhesive -1-  to the marked area of the padding ↓-2-  .

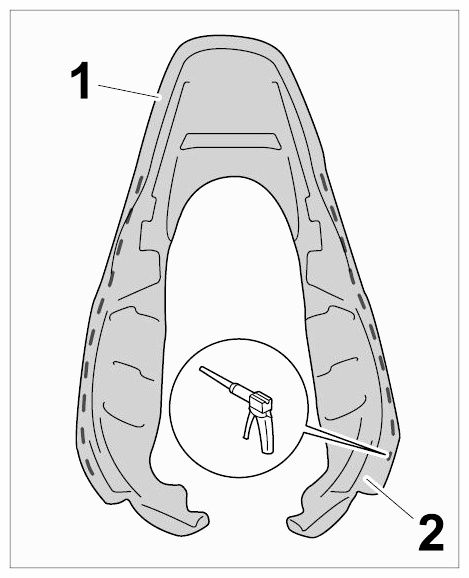

   Fig 2: Identifying Applying Adhesive Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Place padding -2-  on the cushion carrier -3-  and align it with the cushion carrier.
3. Engage padding -1-  in the cushion carrier at the sides.

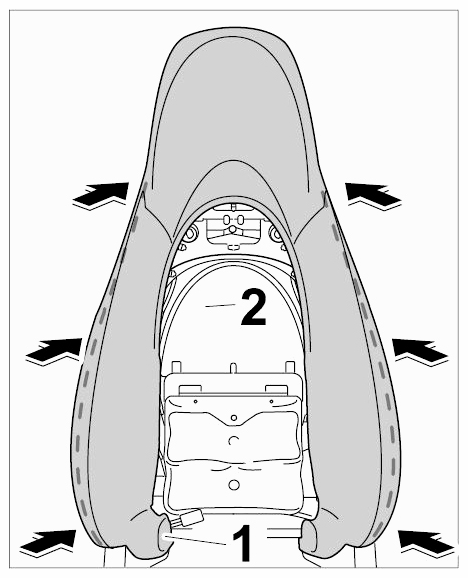

Fig 3: Installing Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
