Installing Motor For Backrest Adjustment

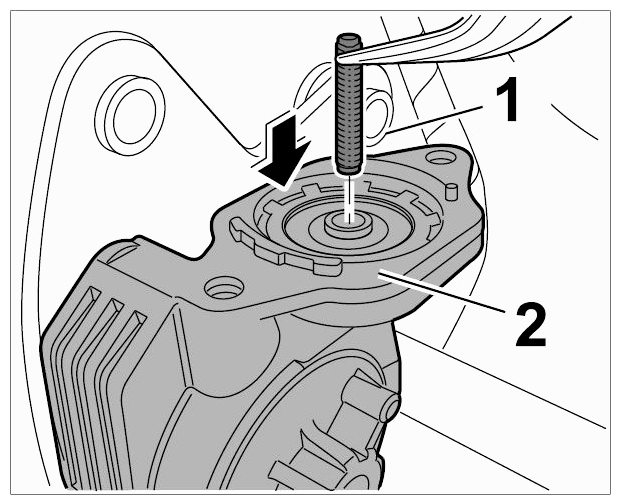

Insert the drive shaft -1- into the gear mount -2- by twisting slightly.

Fig 1: Installing Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

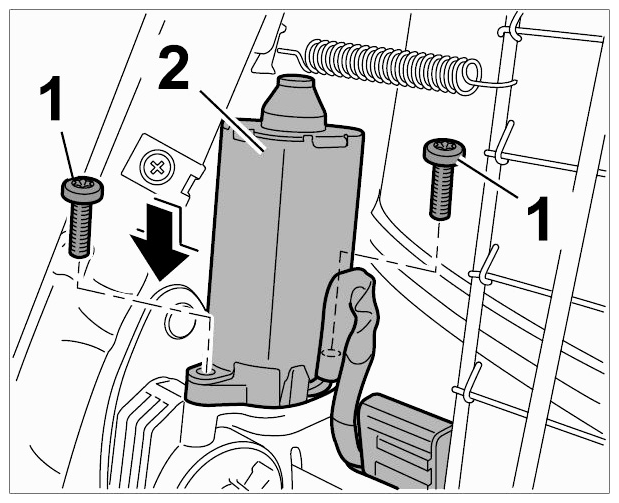

Push motor for backrest adjustment -2- onto the drive shaft by twisting slightly and secure with the two fastening screws -1- .

Fig 2: Installing Backrest Adjustment Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

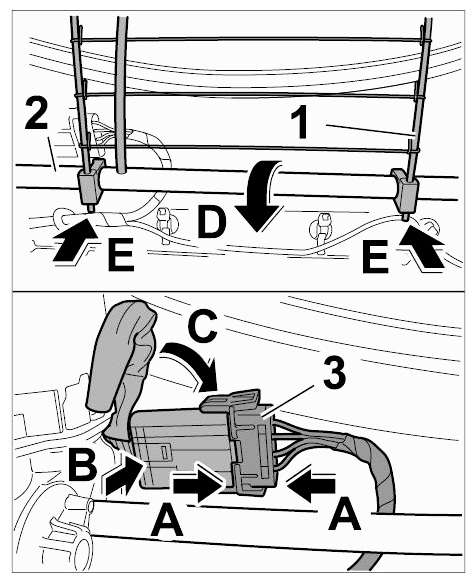

Push plug connection -3- together -arrows A- until it engages securely.

Fig 3: Connecting Plug Connection On Backrest Adjustment Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert plug connection -3- into the backrest frame -arrow B- and turn approx. 90° clockwise -arrow C- .
Swivel inner spring for backrest frame -1- downwards -arrow D- and clip in at the drive shaft -2- (-arrows E- ).
