Removing Wire Harness For Electrically Adjustable Seat

Information

This description covers the two-piece wire harness for an electrically adjustable seat with memory. Some plug connections will not be present on a single-piece wire harness without memory.

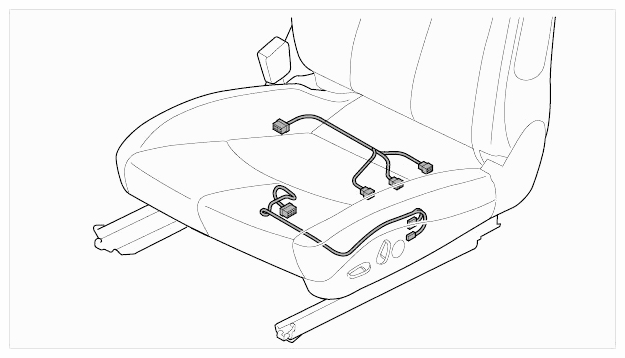

Fig 1: Installation Position Of Wire Harness For Electrically Adjustable Seat
G09593970Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector overview for wire harness for electrically adjustable seat

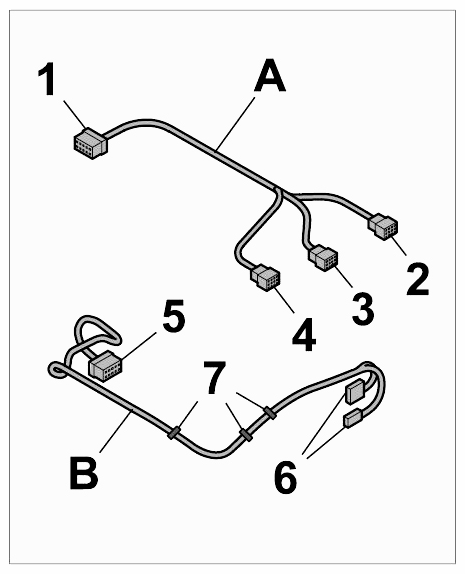

Fig 2: Harness Connector For Electrically Adjustable Seat
G09593971Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release and pull off connector -1-  on control unit for memory seat adjustment. → 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT
  2. Release and pull off connector -2-  on motor for seat adjustment. → 728719 REMOVING AND INSTALLING MOTOR FOR SEAT ADJUSTMENT
  3. Release and pull off connector -3-  on motor for rear vertical adjustment. → 729219 REMOVING AND INSTALLING MOTOR FOR REAR VERTICAL ADJUSTMENT
  4. Release and pull off connector -4-  on motor for front vertical adjustment. → 728819 REMOVING AND INSTALLING MOTOR FOR FRONT VERTICAL ADJUSTMENT
  5. Remove wire harness -A-  .
  6. Release and pull off connector -5-  on control unit for memory seat adjustment. → 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT
  7. Release and pull off connector on seat adjustment switch -6-  . → 721619 REMOVING AND INSTALLING CONTROL MODULE TRIM PANEL
  8. Remove tie-wraps -7-  and pull out wire harness -B-  .
