Removing Control Button For Backrest Release

  1. Press the control button -1-  up and maintain in this position.

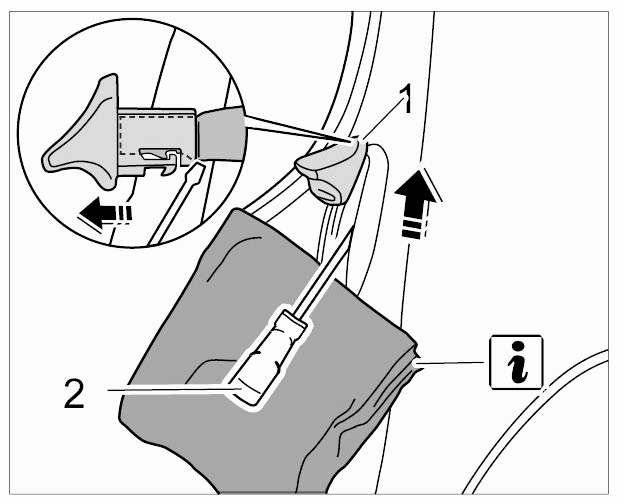

    Fig 1: Removing Control Button
    G09592257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The cloth protects the collar from damage when pushing out the control button.
    • Note that the control button will be damaged during removal. It must not be reused.
  2. Insert a screwdriver -2-  underneath the control button and press the control button -1-  out.
