Removing Height Adjustment Lever

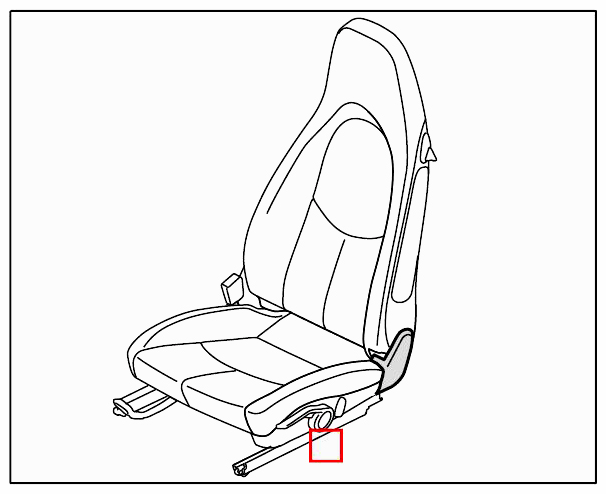

Fig 1: Identifying Backrest Adjustment Installation Position
G09592247Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press out trim panel -7-  using a plastic spatula.

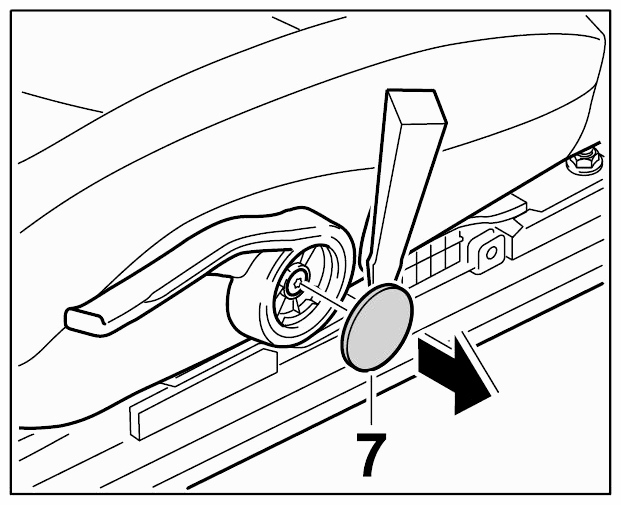

    Fig 2: Pressing Out Trim Panel
    G09592248Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -8-  from the lever -9-  and remove lever.

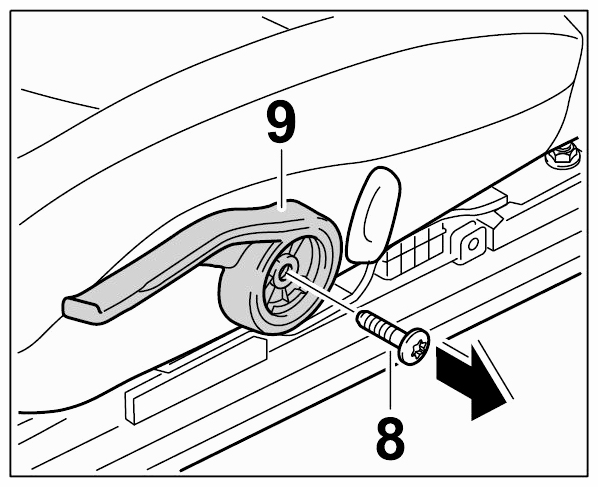

    Fig 3: Removing Adjustment Lever Fastening Screw
    G09592249Courtesy of PORSCHE CARS NORTH AMERICA, INC.
