Installing Height Adjustment Lever

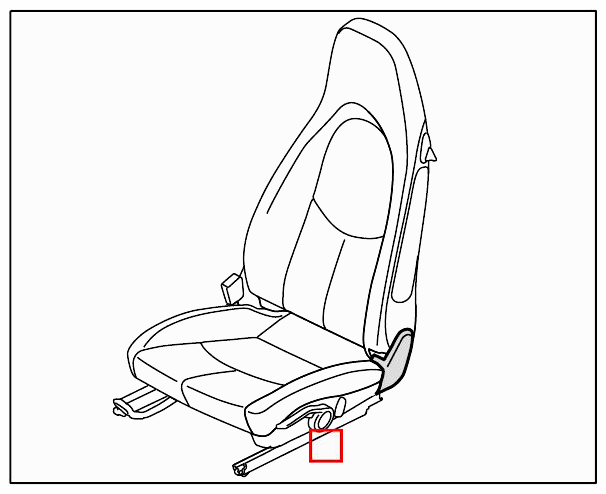

Fig 1: Identifying Backrest Adjustment Installation Position
G09592250Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position lever -9-  on the seat and screw down fastening screw -8-  . Tightening torque → Tightening torque: 5.9 Nm (4.5 ftlb.)

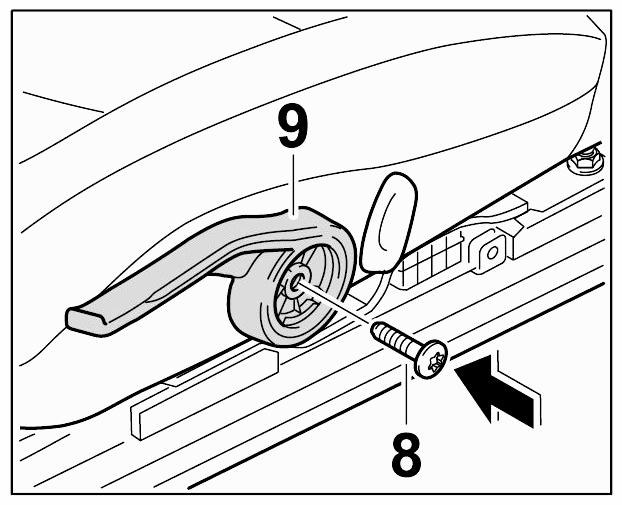

    Fig 2: Removing Adjustment Lever Down Lever
    G09592251Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press in trim panel -7-  .

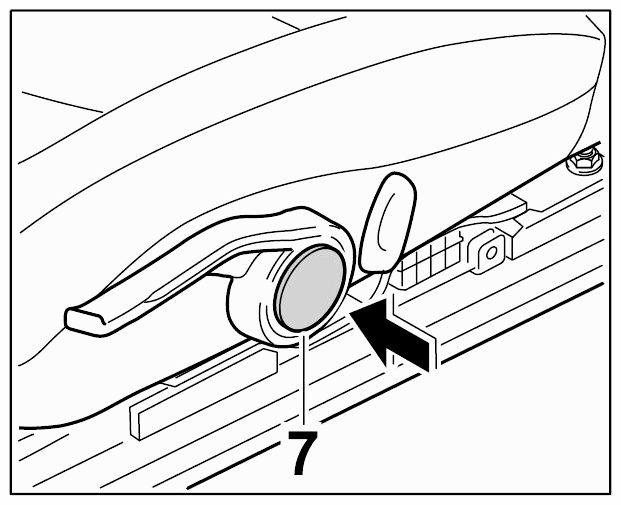

    Fig 3: Pressing Trim Panel
    G09592252Courtesy of PORSCHE CARS NORTH AMERICA, INC.
