Disconnecting Wire Harnesses On Backrest Frame

Information

Only for vehicles with lumbar support.

Information

Make sure not to trap or damage the wire harness when pulling it through.

1. Pull wire harness for backrest -1-  down out of the backrest frame -2-  .

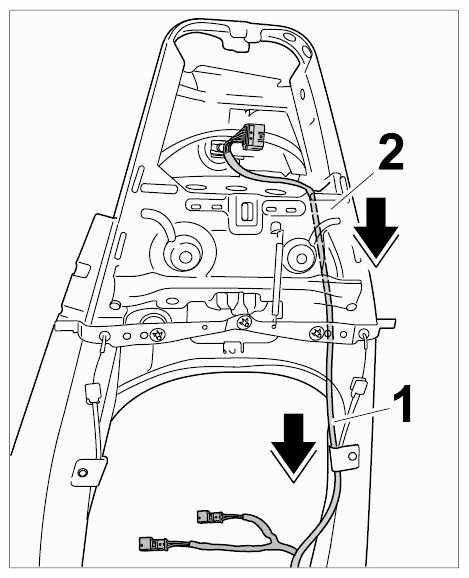

   Fig 1: Pulling Out Wire Harness For Backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Turn plug connection -1-  approx. 90° anti-clockwise -arrow A-  and pull it off the backrest frame -arrow B-  .

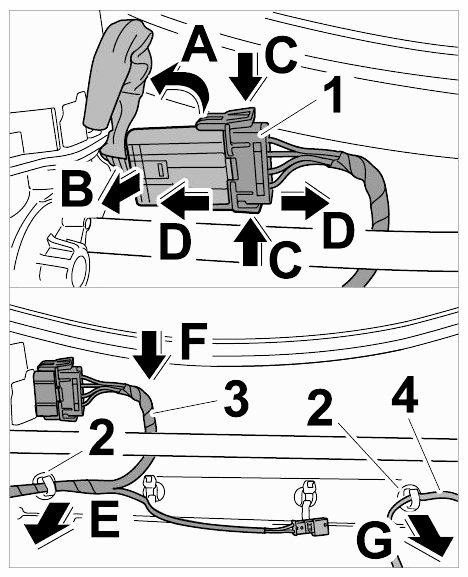

   Fig 2: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release plug connection -arrows C-  and disconnect it -arrows D-  .

   Information

   Make sure not to trap or damage the wire harness when pulling it through.

4. Press locking tabs on fixing clip -2-  together and unclip it -arrow E-  . Pull wire harness for backrest -3-  down and out -arrow F-  .
5. Press locking tabs on fixing clip -2-  together and unclip wire harness for side airbag -4-  from the backrest frame -arrow G-  .
