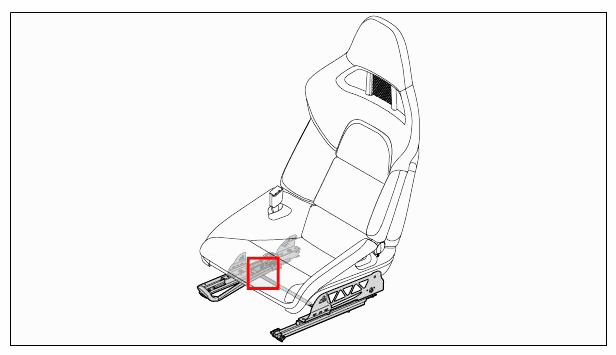

Removing Guide Rail: Notes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

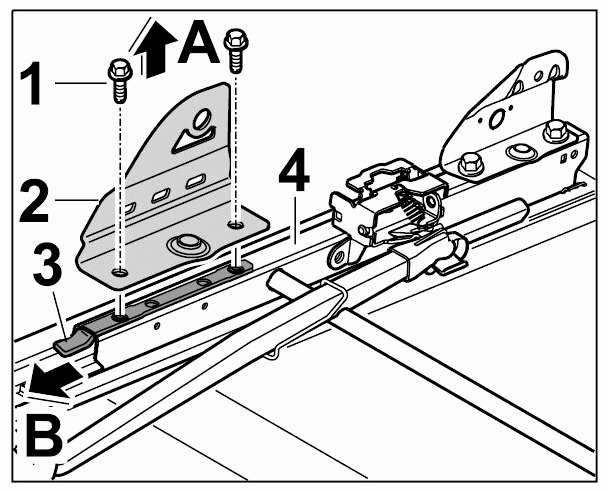

- Remove front inner bracket.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.1. Unscrew fastening screws -1-
.
- 1.2. Take off front inner bracket -2-
(-arrow A-
).
- 1.3. Remove screw-on plate -3-
from the guide rail -4-
(-arrow B-
).

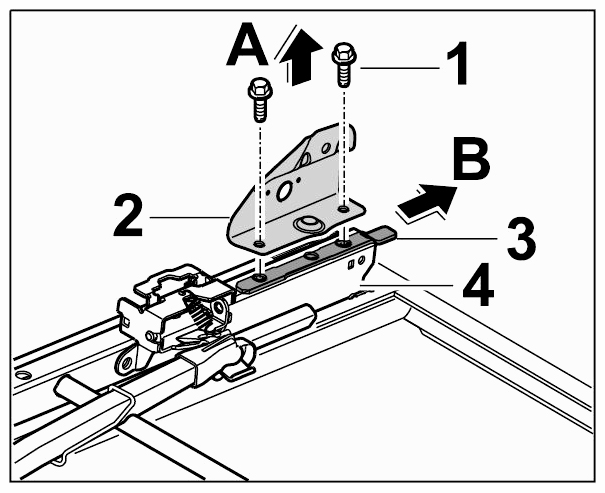

- Remove rear inner bracket.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 2.1. Unscrew fastening screws -1-
.
- 2.2. Take off rear inner bracket -2-
(-arrow A-
).
- 2.3. Remove screw-on plate -3-
from the guide rail -4-
(-arrow B-
).

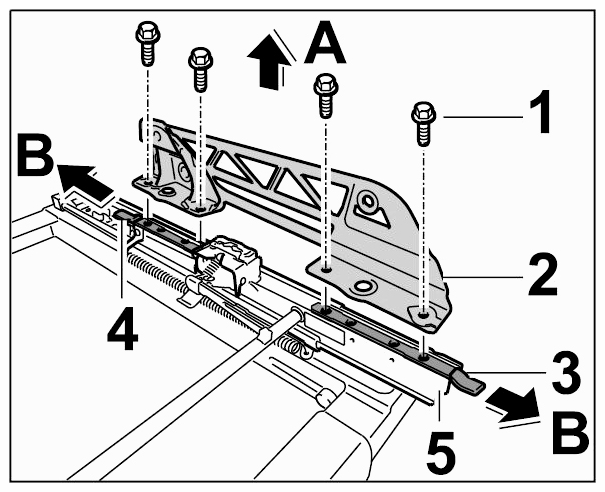

- Remove outer bracket.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 3.1. Unscrew fastening screws -1-
.
- 3.2. Take off outer bracket -2-
(-arrow A-
).
- 3.3. Remove screw-on plate -3-
and -4-
from the guide rail -5-
(-arrows B-
).

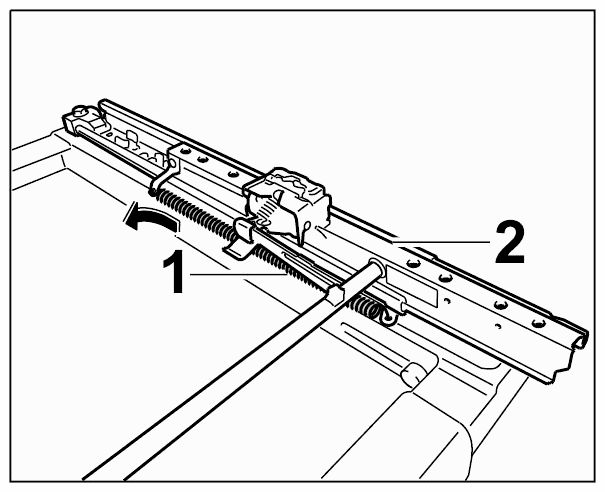

- Disengage tension spring -1-
from the outer guide rail -2-
(-arrow-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

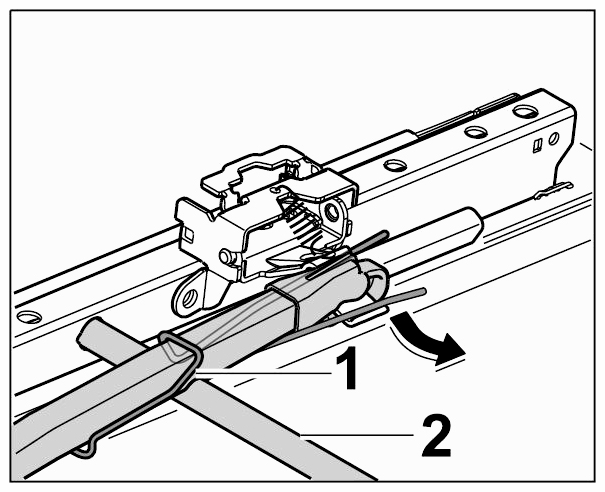

- Disengage locking spring -1-
on the fore/aft adjustment lever -2-
(-arrow-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

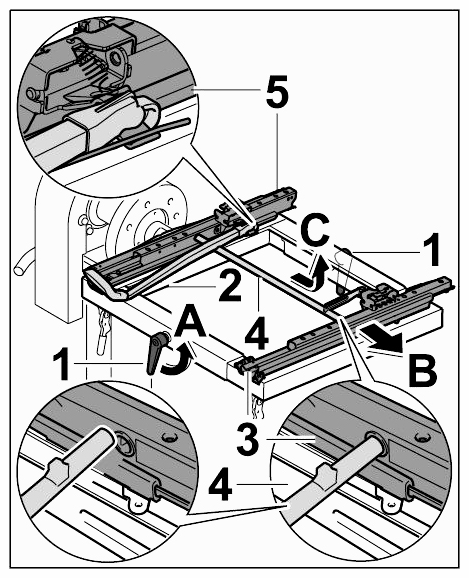

- Remove fore/aft adjustment lever.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 6.1. Open locking mechanism -1-
on the seat mounting -2-
(-arrow A-
).
- 6.2. Pull seat mounting -2-
and outer guide rail -3-
out of the fore/aft adjustment lever -4-
(-arrow B-
).
- 6.3. Disengage fore/aft adjustment lever -4-
from the inner guide rail -5-
(-arrow C-
).

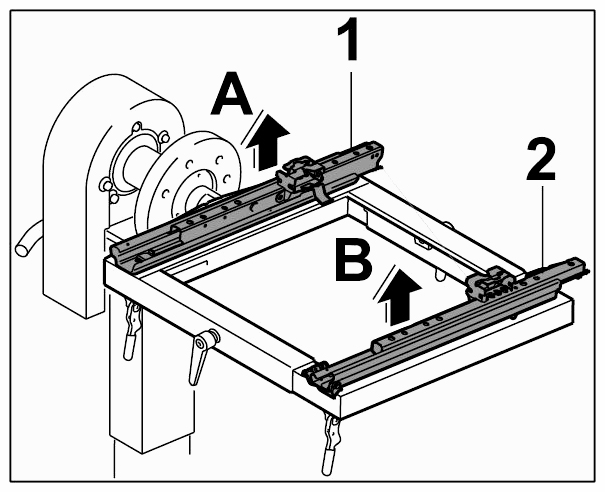

- Release inner guide rail -1-
from the seat mounting and remove it -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Release outer guide rail -2-
from the seat mounting and remove it -arrow B-
.
