Removing Seat Rail Cover

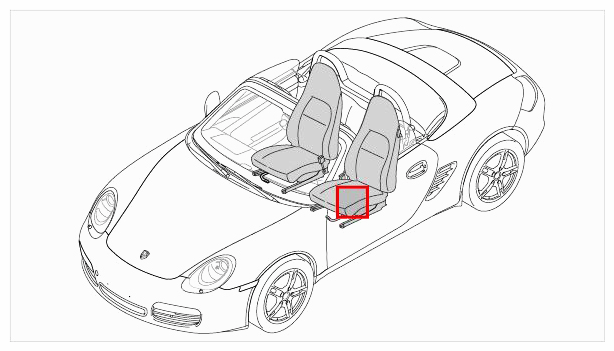

Fig 1: Identifying Front Seat Installation Position
G09592026Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Caution! Locking lugs can break.

  1. Insert a screwdriver -1-  under the lugs and press upwards slightly -Arrow A-  .
  2. Pull seat rail covers -2-  on right and left seat rails off in forward direction.

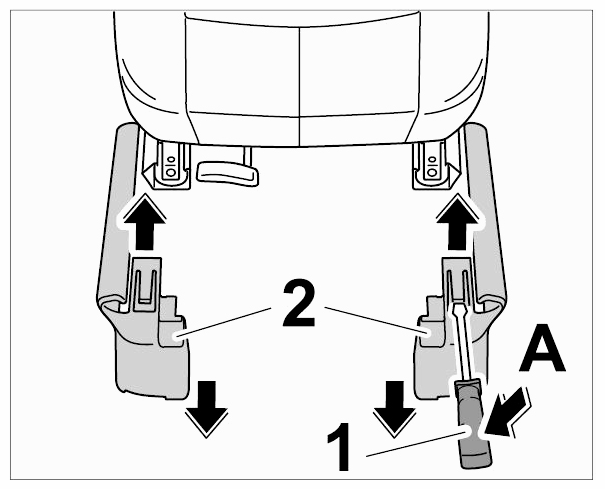

  3. Fig 2: Removing Seat Rail Cover
    G09592027Courtesy of PORSCHE CARS NORTH AMERICA, INC.
