Fit Seat Rail Cover

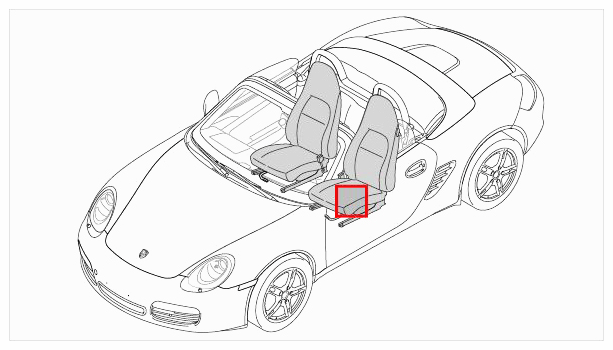

Fig 1: Identifying Front Seat Installation Position
G09592053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

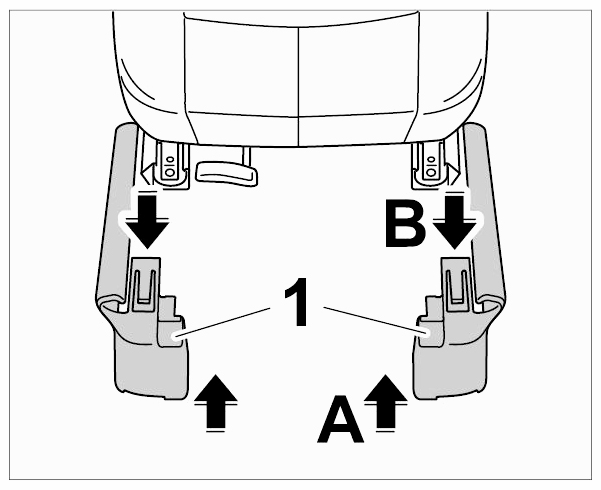

  1. Push seat rail cover -1-  into front end of the left and right seat rails -Arrow A-  until the locking tab audibly engages -Arrow B-  .
    Fig 2: Fitting Seat Rail Cover
    G09592054Courtesy of PORSCHE CARS NORTH AMERICA, INC.
