Removing Cup Holder

  1. Open the glove compartment.

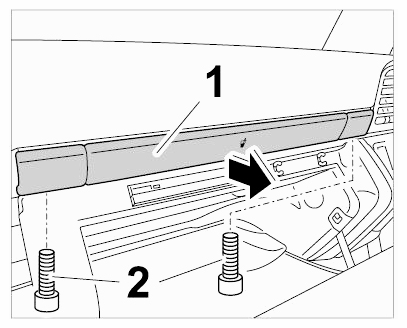

    Fig 1: Removing Cup Holder
    G09591352Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  from cupholder -1-  .
  3. Take off the cup holder -1-  .
