Installing Cup Holder

  1. Push cup holder -1-  into the shaft of the glove compartment.
  2. Tighten fastening screws -2-  . Tightening torque → Final tightening: 7.2 ftlb.

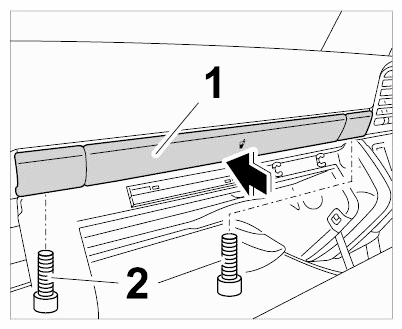

    3. Fig 1: Installing Cup Holder
    G09591353Courtesy of PORSCHE CARS NORTH AMERICA, INC.
