Removing Instrument Cluster
NOTE:
Voltage drop
- Risk of irreparable damage to control unit
- Risk of damage to control unit
- Fault entries in the control unit
- Coding in the control unit is aborted
- Malfunctions in control unit, even during programming
→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.
→ Ensure that the power supply is not interrupted during programming.
→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.
- If a new instrument cluster should be installed, read out the values from the instrument cluster if possible. → Programming Instrument Cluster -
- Loosen the steering wheel adjustment, put the steering wheel in the front-most and lowest position and lock the steering wheel adjustment.

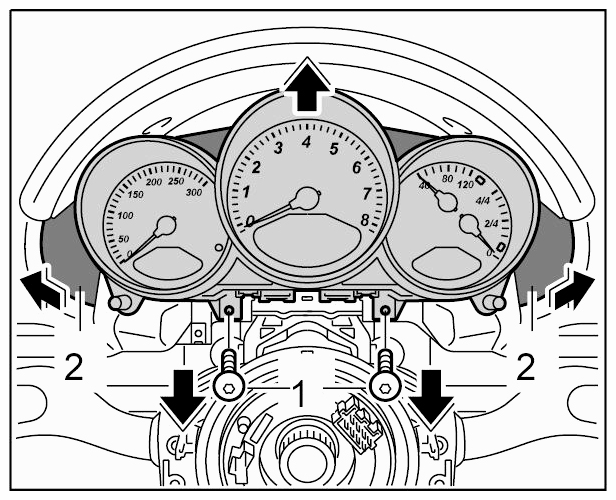

- Unscrew the two fastening screws -1- .
- Pull instrument cluster forward, push side covers -2- aside.

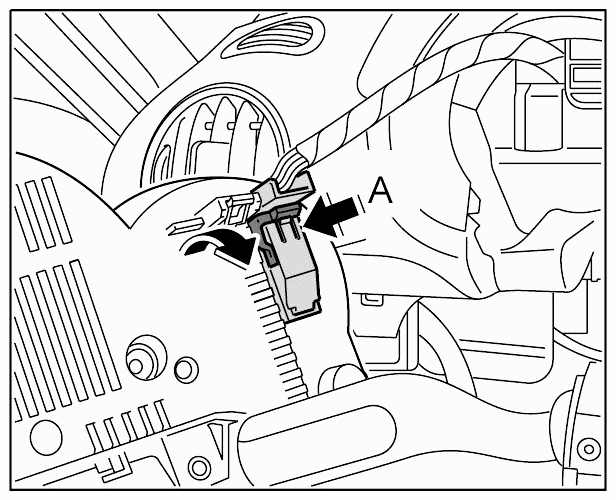

- Release electric connector -A- and unplug it.
