Removing Passenger's Footwell Socket

Fig 1: Identifying Passenger'S Footwell Socket
G09593112Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen the fastening nuts -1-  and pull to the rear over the electric wire.
  2. Unlock electrical plug -A-  and pull from the socket.

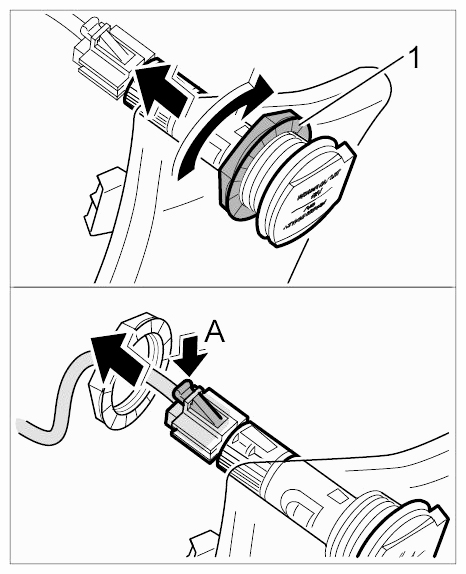

    3. Fig 2: Removing Passenger'S Footwell Socket
    G09593113Courtesy of PORSCHE CARS NORTH AMERICA, INC.
