Installing The Centre Console Socket

  1. Insert the socket into the centre console until it clicks into place.
  2. Push electrical plug onto socket until plug is felt to engage.

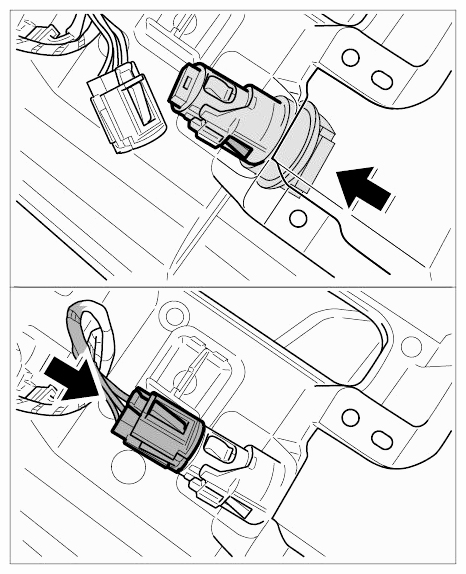

    3. Fig 1: Installing Centre Console Socket
    G09593116Courtesy of PORSCHE CARS NORTH AMERICA, INC.
