Installing Stopwatch

  1. Insert the stopwatch into the holder and attach it.
  2. Position the cover and screw down with the fastening screws.

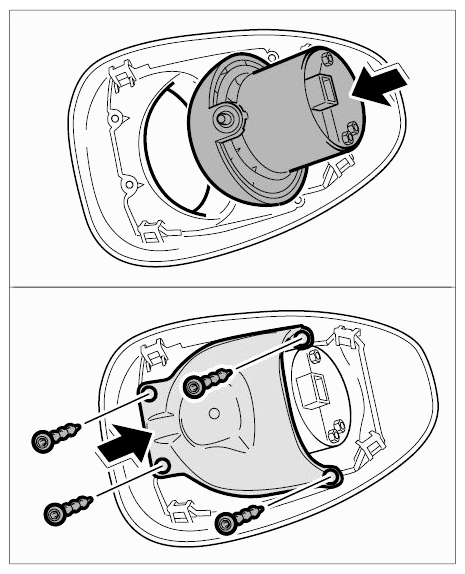

    3. Fig 1: Installing Stopwatch
    G09593087Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Insert electrical connector into stopwatch until it is felt to engage.

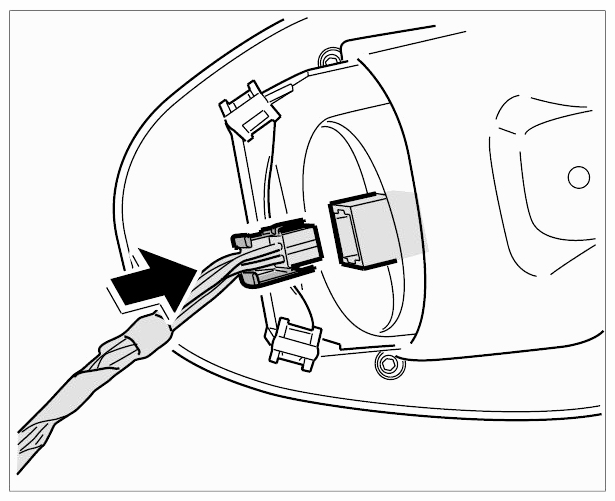

    Fig 2: Inserting Connector Into Stopwatch
    G09593088Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Run electrical lead into the dashboard, position the stopwatch with its cover over the dashboard and clip in the four clips.

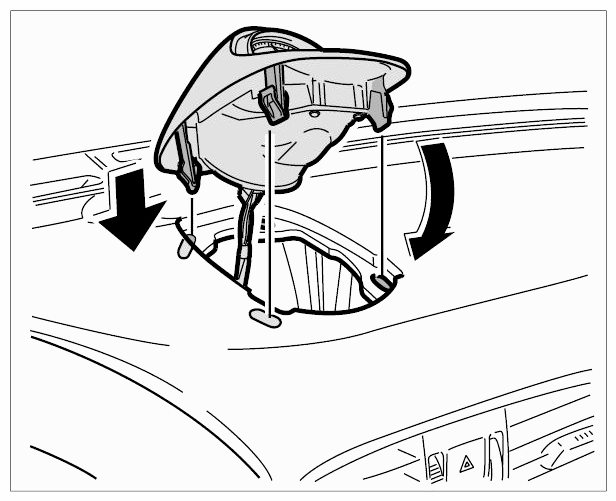

    Fig 3: Positioning Stopwatch With Cover Over Dashboard
    G09593089Courtesy of PORSCHE CARS NORTH AMERICA, INC.
