Removing Air Flow Sensor

  1. Remove rubber sleeve for intake-air distributor -1-  . Unscrew the screw-type hose clamp -2-  for this purpose.
  2. Release and disconnect cable plug for air flow sensor -3-  .
  3. Open clamps -arrows-  .

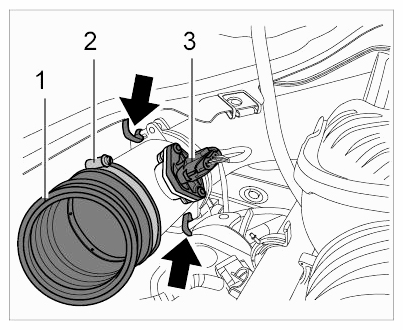

    4. Fig 1: Locating Mass Air Flow Sensor
    G09586169Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull air flow sensor out of air cleaner housing flange.
