Removing Air Cleaner Element

Information

The air cleaner housing should not be cleaned on the outside with strong cleaning agents.

1. If the air cleaner housing is dirty on the outside, clean only with a damp cloth and some washing-up liquid.
2. Undo two sheetmetal screws -1-  and lift air cleaner housing cover -2-  up and off.

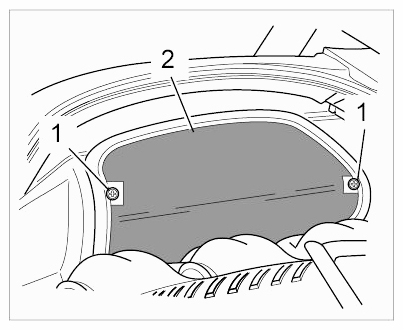

   Fig 1: Identifying Air Cleaner Housing Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew fastening screw -1-  and remove the air-cleaner element -2-  from the flange.

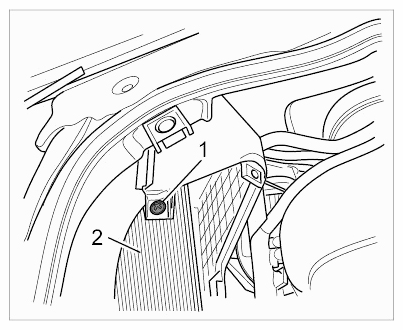

   Fig 2: Identifying Air-Cleaner Element Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Guide the air-cleaner element -1-  into the front part of the air-cleaner housing -in direction of travel-  . Then turn the element in such a way that the opening is facing the observer. → Removing and installing air-cleaner element

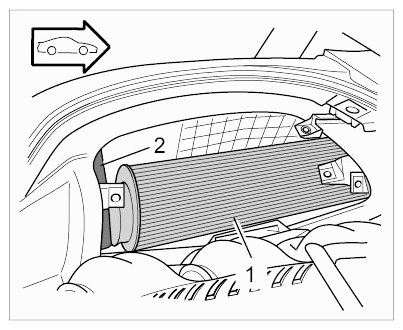

   Fig 3: Identifying Air-Cleaner Element Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • Pull air-cleaner element up and out.

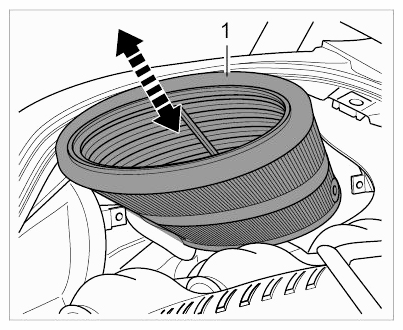

     Fig 4: Removing/Installing Air-Cleaner Element

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove any dirt in air cleaner housing.
6. Unscrew screw -1-  , release clips and remove holder -2-  (only necessary when installing a new air-cleaner element).

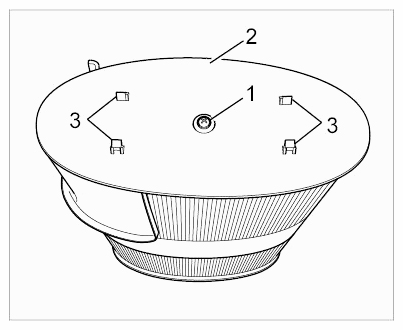

   Fig 5: Identifying Air-Cleaner Element With Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
