Removing Tensioning Roller

  1. Loosen protection cap -1-  using a small screwdriver -2-  and remove it -arrow-  .

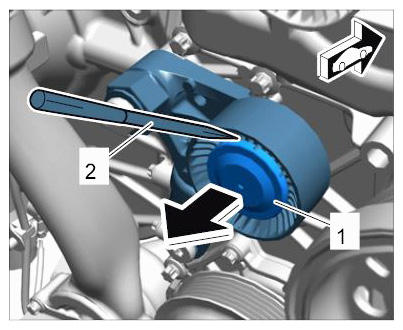

    Fig 1: Identifying Protection Cap On Tensioning Roller (Shown On Carrera)
    G09585397Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. The following tools are recommended for removal and installation.

    Tensioning roller tools:

    1. Torque wrench Nr.90 Pos.3
    2. Ratchet head from toolbox Insert for torque wrench 9792
    3. Internal Torx bit T50 with width across flats 8 mm

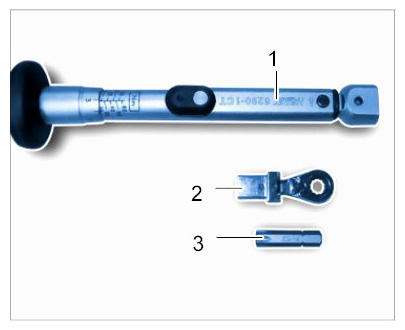

      Fig 2: Identifying Tools For Tensioning Roller
      G09585398Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove tensioning roller -2-  .
    1. 3.1. Loosen internal Torx screw -1-  using the specified tool, unscrew screw and remove tensioning roller.

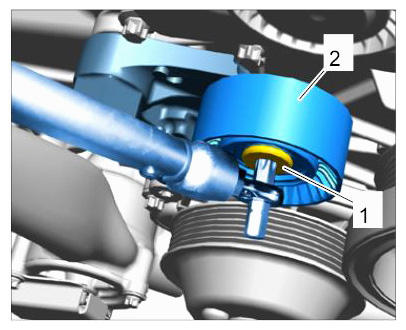

      Fig 3: Identifying Tensioning Roller And Screw
      G09585399Courtesy of PORSCHE CARS NORTH AMERICA, INC.
