Optical Waveguide Variants

Information

Depending on the equipment I No., the installation positions of the audio components in the front luggage compartment differ.

MOST control units, variant A - B - C

  1. Radio/PCM
  2. Connection point interior/luggage compartment
  3. Loudspeaker amplifier
    Fig 1: Identifying Most Control Units Variant A - B - C On 911
    G09593062Courtesy of PORSCHE CARS NORTH AMERICA, INC.

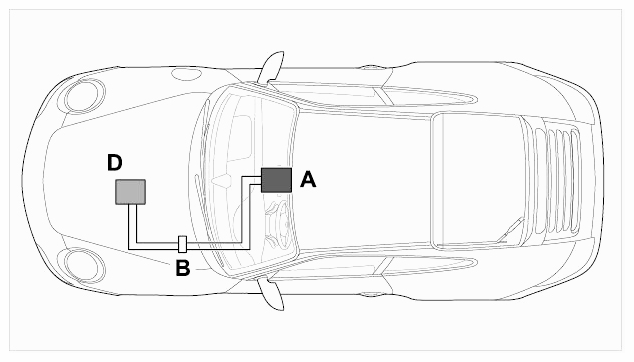

MOST control units, variant A - B - D

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. D  - CD changer
    Fig 2: Identifying Most Control Units Variant A - B - D On 911
    G09593063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

MOST control units, variant A - B - C - D

  1. Radio/PCM
  2. Connection point interior/luggage compartment
  3. Loudspeaker amplifier
  4. CD changer
    5. Fig 3: Identifying Most Control Units Variant A - B - C - D On 911
    G09593064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

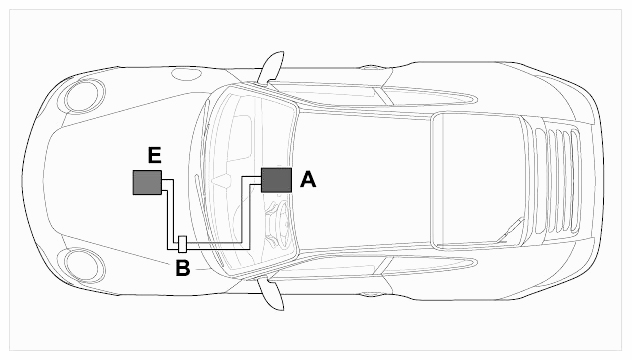

MOST control units, variant A - B - E

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. E  - Navigation unit
    4. Fig 4: Identifying Most Control Units, Variant A - B - E On 911
    G09593065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

MOST control units, variant A - B - C - E

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. C  - Loudspeaker amplifier
  4. E  - Navigation unit
    5. Fig 5: Identifying Most Control Units Variant A - B - C - E On 911
    G09593066Courtesy of PORSCHE CARS NORTH AMERICA, INC.

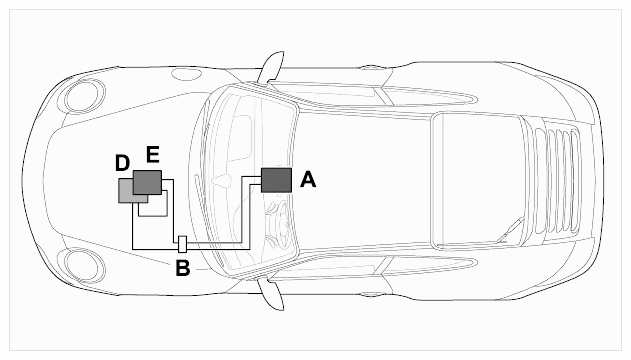

MOST control units, variant A - B - D - E

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. D  - CD changer
  4. E  - Navigation unit
    5. Fig 6: Identifying Most Control Units Variant A - B - D - E On 911
    G09593067Courtesy of PORSCHE CARS NORTH AMERICA, INC.

MOST control units, variant A - B - C - D - E

  1. Radio/PCM
  2. Connection point interior/luggage compartment
  3. Loudspeaker amplifier
  4. CD changer
  5. Navigation unit
    6. Fig 7: Identifying Most Control Units Variant A - B - C - D - E On 911
    G09593068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

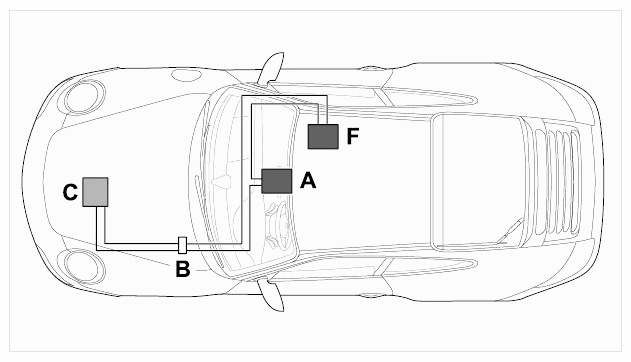

MOST control units, variant A - B - C - F

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. C  - Loudspeaker amplifier
  4. F  - Telephone control module
    5. Fig 8: Identifying Most Control Units Variant A - B - C - F On 911
    G09593069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

MOST control units, variant A - B - D - F

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. D  - CD changer
  4. F  - Telephone control module
    5. Fig 9: Identifying Most Control Units Variant A - B - D - F On 911
    G09593070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

MOST control units, variant A - B - E - F

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. E  - Navigation unit
  4. F  - Telephone control module
    5. Fig 10: Identifying Most Control Units Variant A - B - E - F On 911
    G09593071Courtesy of PORSCHE CARS NORTH AMERICA, INC.
