Removing Rear Lid Hinge Trim

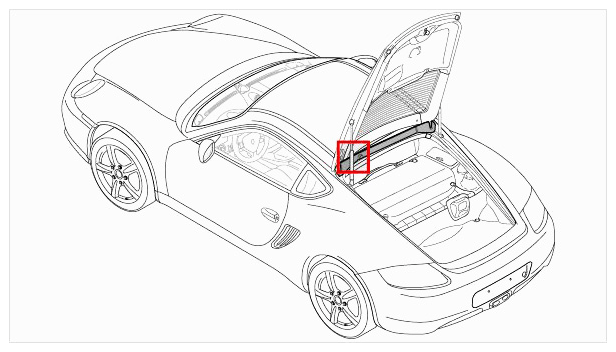

Fig 1: Identifying Installation Position Of Rear Lid Hinge Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move rear lid to service position. → MOVING REAR LID TO SERVICE POSITION
Unclip lid hinge trim -1- on the right and left in direction of arrow.

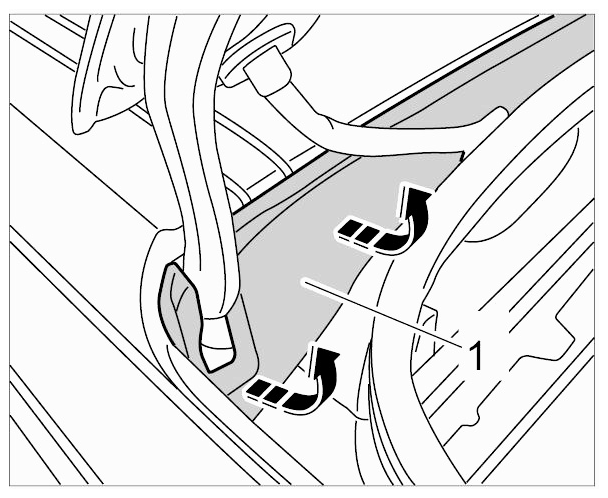

Fig 2: Removing Lid Hinge Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release lid hinge trim -1- from the roof area and remove it in an upward direction.

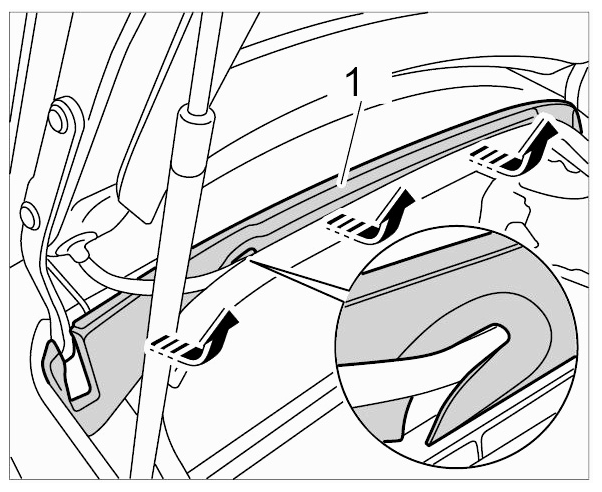

Fig 3: Removing Lid Hinge Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check clamps -1- and replace them if necessary.

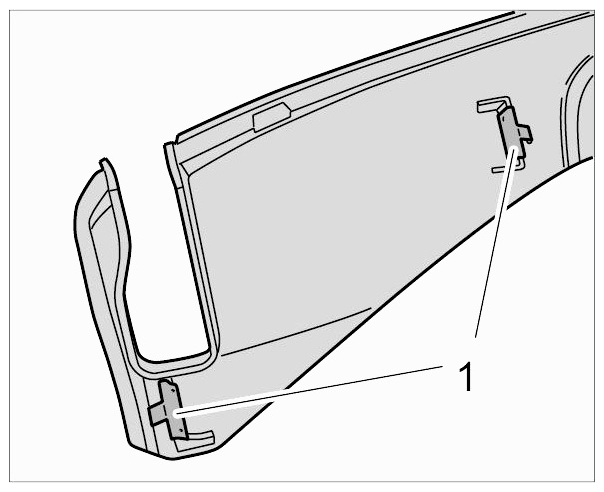

Fig 4: Identifying Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen and remove adhesive residue on the roof using silicone remover.
