Installing Rear Lid Hinge Trim

Information

• The bonding surface must be free of dirt and grease. Clean it if necessary using cleaning agent.

1. Before gluing in the lid hinge trim -1-  , pull off protective film -2-  on the adhesive tape without leaving any residue.
   Fig 1: Pulling Off Protective Film

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position lid hinge trim -1-  and align wire harness for rear lid -2-  with respect to the lid hinge trim.
   Fig 2: Installing Lid Hinge Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

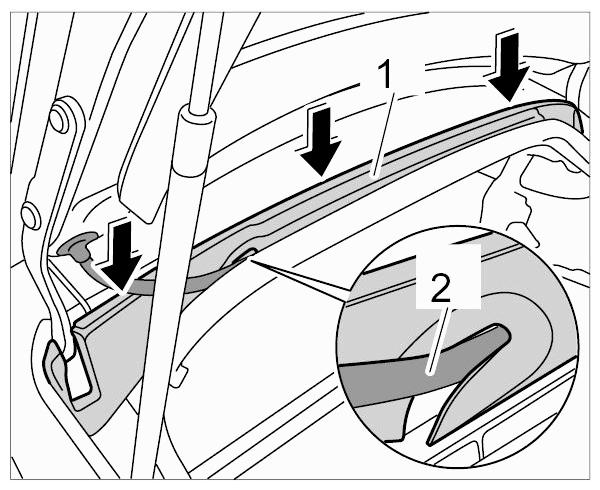

3. Insert locking lugs on the lid hinge trim -1-  at the right and left in -direction of arrow A-  and press them in -Arrow B-  until the clamps engage.
   Fig 3: Securing Lid Hinge Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Press lid hinge trim onto the body and press it on securely at the edges and at the right using a plastic wedge.
5. Wait for 15 minutes before pressing the rear lid into the lock.
