Affixing The Stone Guard Film

Information

• Immediately before sticking on, wash off the areas on which you intend to stick the seal using isopropanol to ensure that all traces of silicone, grease and oil are completely removed.

1. Clean the paint surface for the stone guard film and rub it dry using a lint-free, moisture absorbing cloth.

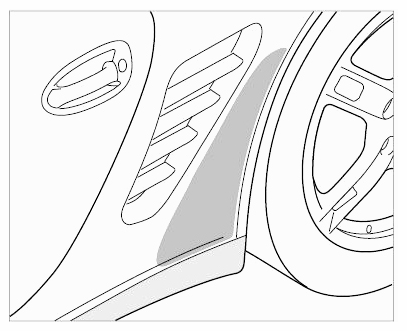

   Fig 1: Cleaning Stone Guard Paint Surface

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Wet the surface to be affixed with application fluid after cleaning.

   Information

   • The film must be affixed immediately after spraying.
3. Pull off film for stickers, and wet the bonding surface of the film with the application fluid.
4. Affix film to vehicle to the dimension -X= 0.5 + 1.5 mm-  and press lightly. Slight adjustments to the position can still be made.

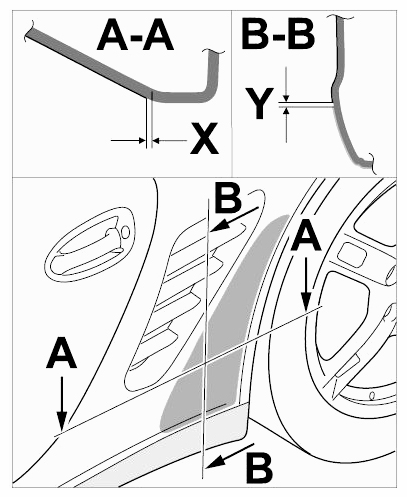

   Fig 2: Installing Stone Guard Film

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The film must be applied without bubbles, and no water may remain between the paint surface and adhesive.
5. Press on the film with a plastic spatula from the inside to the outside to squeeze out water.
6. The adhesive is activated by the pressure of the spatula. The contact pressure should be at least 2 kg.
7. After affixing, pull off the thin protective film.
8. Dry off the entire surface with a lint-free, moisture-absorbing, non-scratching cloth.
9. Check the affixed film for bubbles and faults. The film must bond permanently to the vehicle. Check corners again for correct bonding (press on again if necessary).
