Removing Spoiler Drive

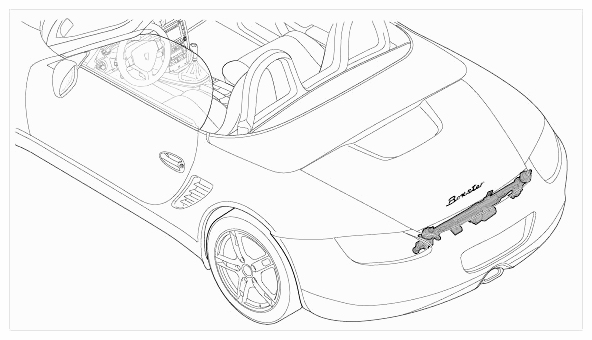

Fig 1: Identifying Spoiler Drive Installation Position
G09591171Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew the three fastening nuts -2-  and remove the three washers -3-  .
  2. Unscrew the fastening screw -4-  and remove the washer -5-  .
  3. Unscrew the four fastening screws -6-  on both sides and remove the mounting plates -7-  .
  4. Disconnect plug connection -8-  and lift up and remove spoiler drive -1-  .

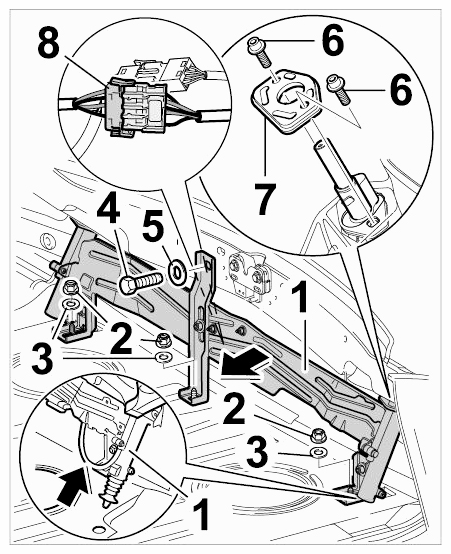

    5. Fig 2: Removing Spoiler Drive
    G09591172Courtesy of PORSCHE CARS NORTH AMERICA, INC.
