Installing Spoiler Drive

  1. Insert and position spoiler drive -1-  .
  2. Connect plug connection -8-  .

    Information

    This can result in leaks in the area (mounting plates) around the holder unit. The mounting plates 7 must always be replaced when the spoiler drive is removed or the fastening screws 6 are loosened.

  3. Position both mounting plates -7-  and secure with the four fastening screws -6-  . → Tightening torque: 6 Nm (4.5 ftlb.)
  4. Tighten fastening screw -4-  with the washer -5-  . → Tightening torque: 10 Nm (7.5 ftlb.)
  5. Tighten the three fastening nuts -2-  with the washers -3-  . → Tightening torque: 6 Nm (4.5 ftlb.)

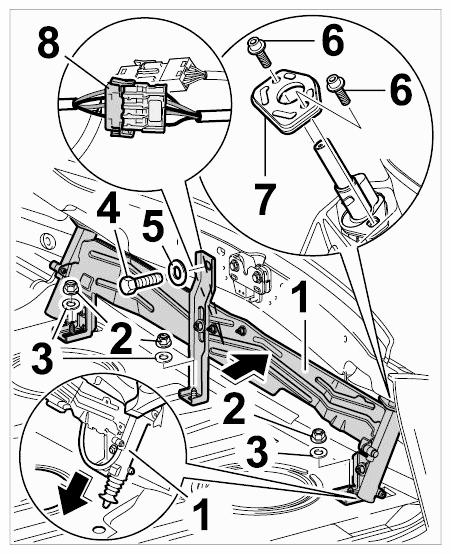

    6. Fig 1: Installing Spoiler Drive
    G09591173Courtesy of PORSCHE CARS NORTH AMERICA, INC.
