Removing Rear Spoiler Trim

Remove tail light at the left and right. → REMOVING TAIL LIGHT
Remove rear spoiler trim.

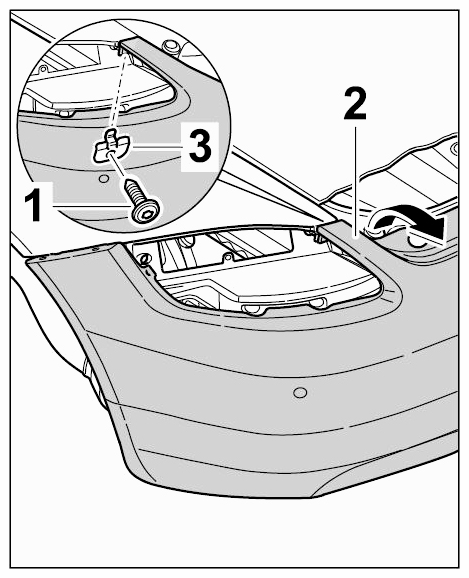

1. 2.1. Unscrew fastening screw -1- at the left and right and remove retainer plate -3- .

  Fig 1: Loosening Rear Apron
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

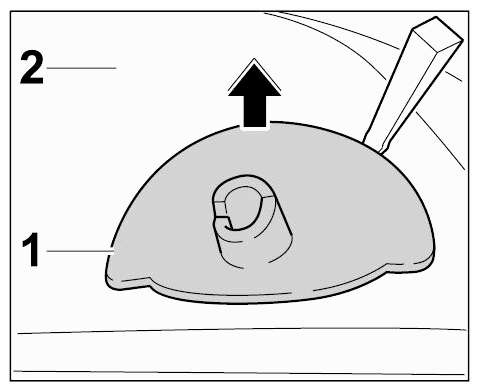

2. 2.2. Disengage rear apron -2- from the side panel -arrow- .

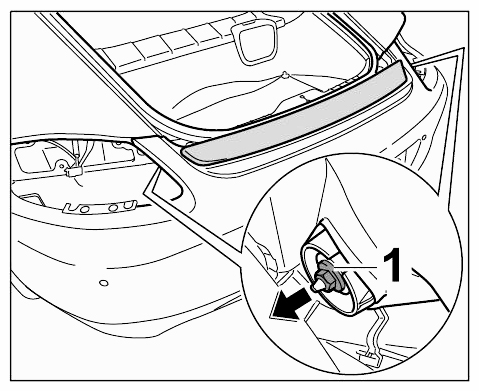

3. 2.3. Screw off fastening nut -1- at the left and right -arrow- .

  Fig 2: Loosening Rear Spoiler Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Heat the rear spoiler trim -1- in area -A- (adhesive tape) with the hot-air blower v.a.g 1416 .

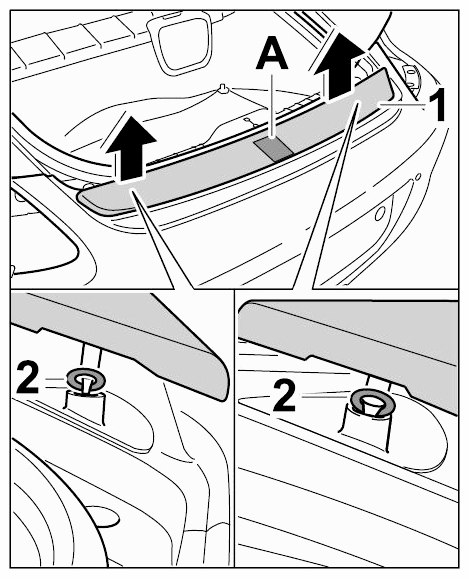

5. 2.5. Lift up rear spoiler trim -1- and remove it along with the spacers -2- (-arrows- ).

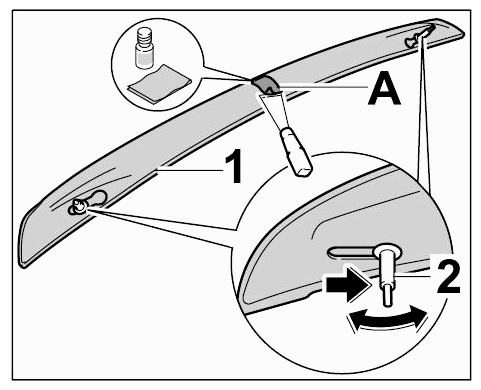

6. 2.6. Slide the spacer bolt -2- to one side, turn it -arrows- and remove it from the rear spoiler trim -1- .
7. 2.7. Scrape off adhesive residue -A- on the rear spoiler trim -1- using a metal scraper.
8. 2.8. Clean bonding surfaces with isopropanol.
  Information

  Only when replacing the rear apron.
Remove adapters for rear spoiler trim at the left and right.

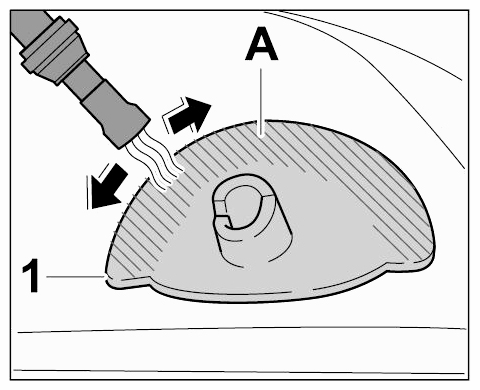

1. 3.1. Heat the adapter -1- in area -A- (adhesive tape) with the hot-air blower -arrows- .

  Fig 5: Loosening Rear Spoiler Trim Adapters
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Insert a plastic wedge between the adapter -1- and rear apron -2- and loosen the bonded joint -arrow- .

  Fig 6: Removing Rear Spoiler Trim Adapters
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

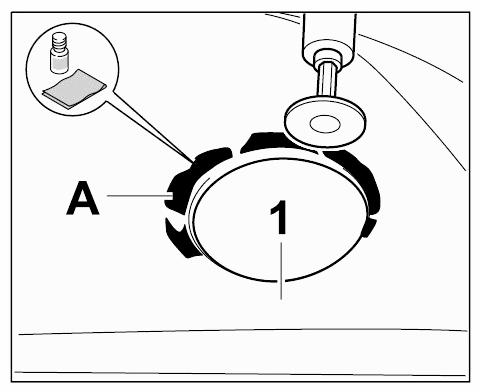

3. 3.3. Remove adhesive residue -A- on the rear apron -1- using the film eraser Nr.174 Pos.1 and holder Nr.174 Pos.2 .

  Fig 7: Removing Adhesive Residue
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Clean bonding surfaces with isopropanol.

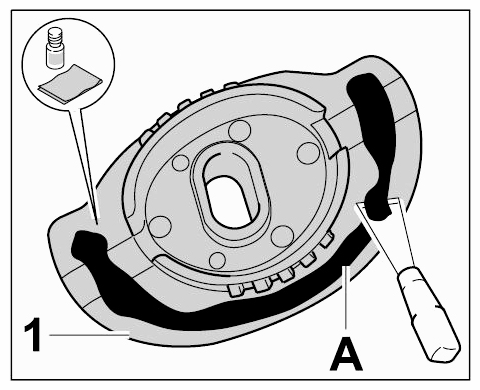

5. 3.5. Scrape off adhesive residue -A- on the adapter -1- using a metal scraper.

  Fig 8: Removing Adhesive Residue
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. 3.6. Clean bonding surfaces with isopropanol.
